Technical Values

Location	Description	Type	Basic value
Brake calliper to wheel bearing housing (grey cast iron)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Initial tightening	30 Nm (22.1 ftlb.)
Brake caliper to wheel bearing housing (grey cast iron)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Final tightening	+ 75°

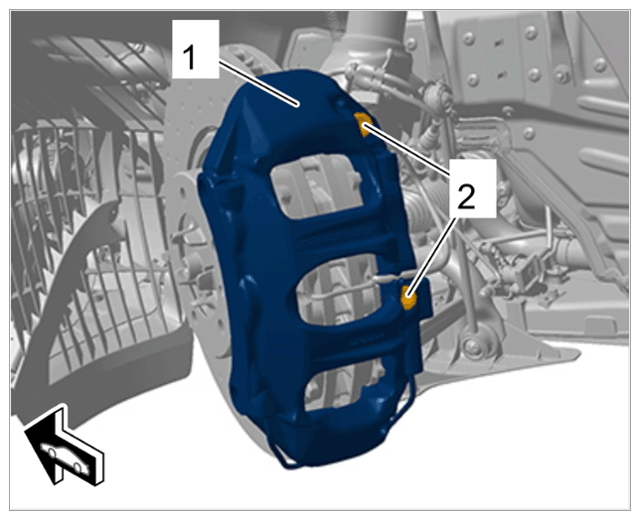

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper front
Brake calliper to adapter (PCCB)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Initial tightening	30 Nm (22.1 ftlb.)
Brake caliper to adapter (PCCB)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Final tightening	+ 75°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper front
Brake hose bracket to wheel bearing housing	Item 2: Hexagon-head bolt, M6	Tightening torque	10 Nm (7.5 ftlb.)

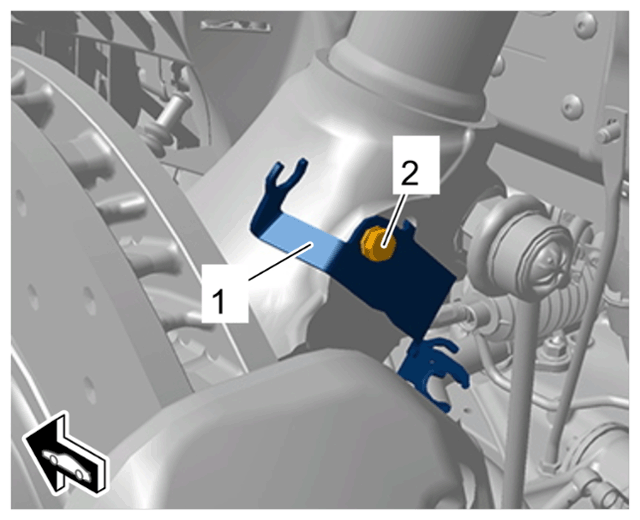

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket on wheel bearing housing
