Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> 47 Brakes - Brake Hydraulic System, Regulator, Booster 3.0L (Eng Code MDK.Ca) -- 992 - 911 CARRERA (992) >> WM, 471019 Removing And Installing Brake Fluid Reservoir >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Brake fluid reservoir to brake master cylinder Hexagon round head bolt, M5 Tightening torque 7 Nm (5 ftlb.)

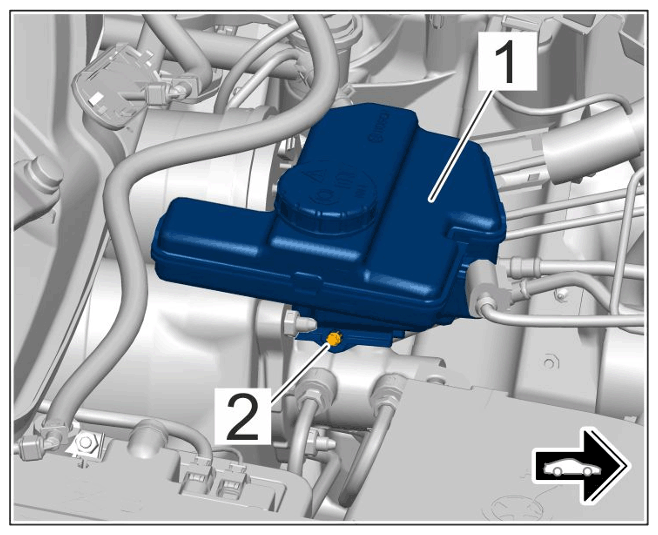

G15520043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing brake fluid reservoir
