Technical Values

Location	Description	Type	Basic value	Tolerance 1
Bleeder valve on brake calliper front (not GT3 vehicles)	Item 1: M10 x 1 thread	Tightening torque	14 Nm (10.3 ftlb.)	+/- 2 Nm (1.5 ftlb.)

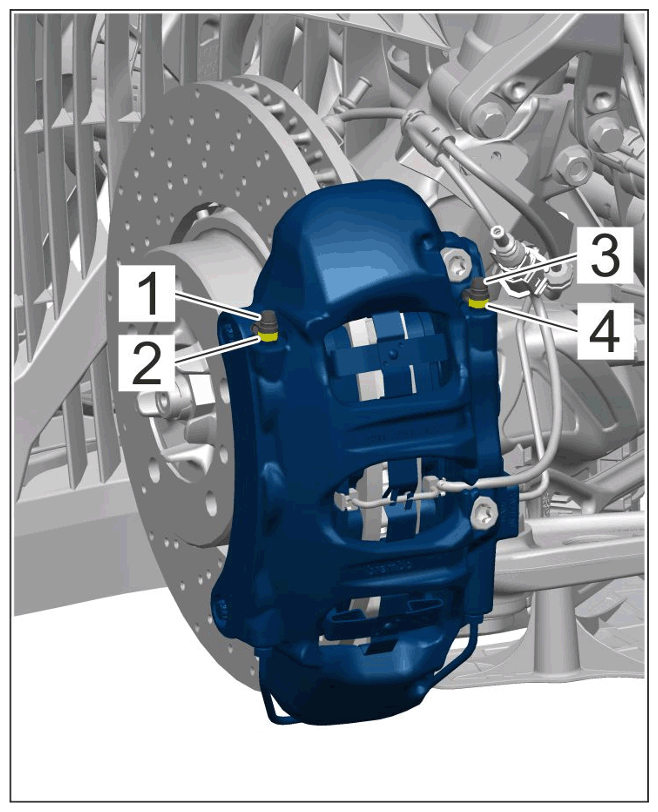

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper for bleeder valves (view of front axle)
Bleeder valve to brake calliper front - GT3 vehicles	Items 2 + 4: M10 x 1 thread	Tightening torque	17 Nm (12.5 ftlb.)	+ 3 Nm (2.2 ftlb.)

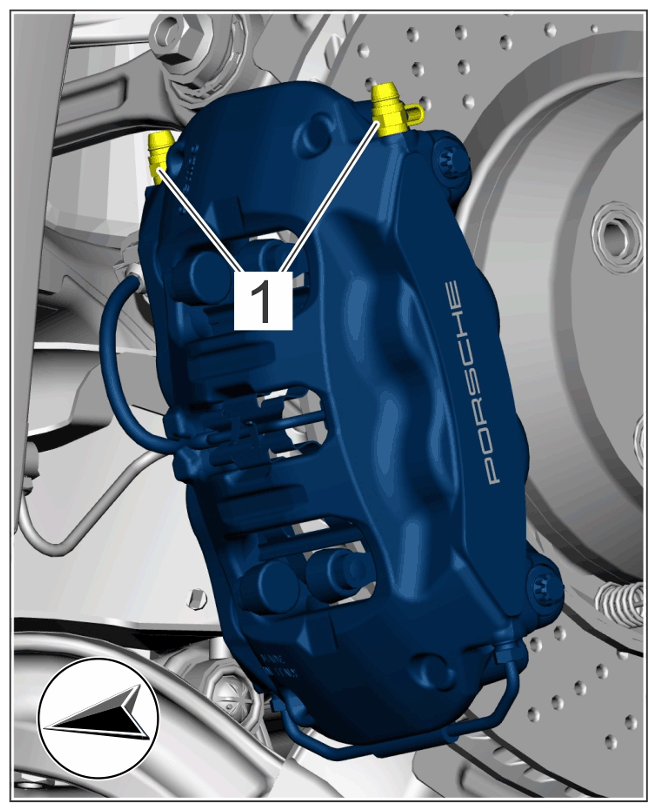

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Protection cap and bleeder valve
Bleeder valve to rear brake calliper	Item 1: M10 x 1	Tightening torque	14 Nm (10.3 ftlb.)

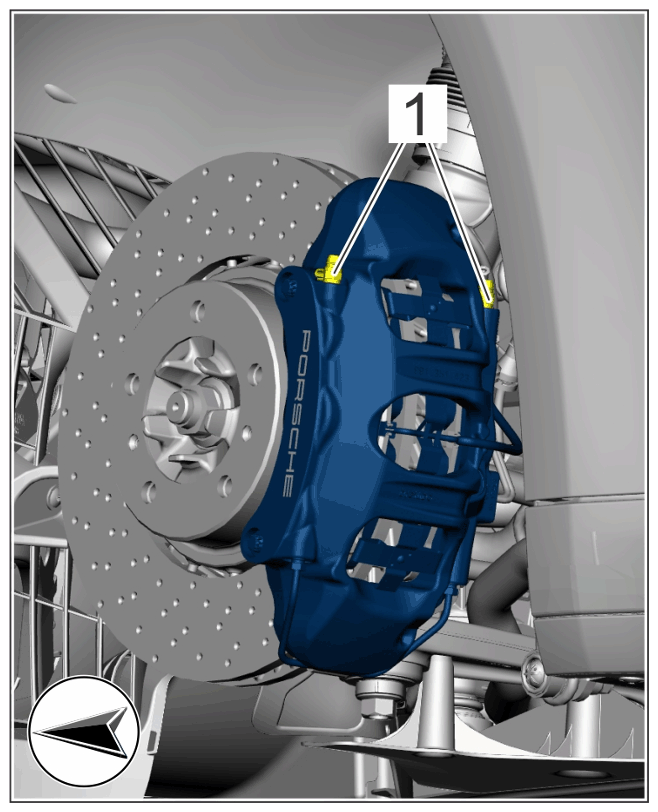

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper rear bleeder valves
Bleeder valve to brake calliper rear - GT3	Item 1: M10 x 1 thread	Tightening torque	12 Nm (8.9 ftlb.)	+ 4 Nm (3 ftlb.)

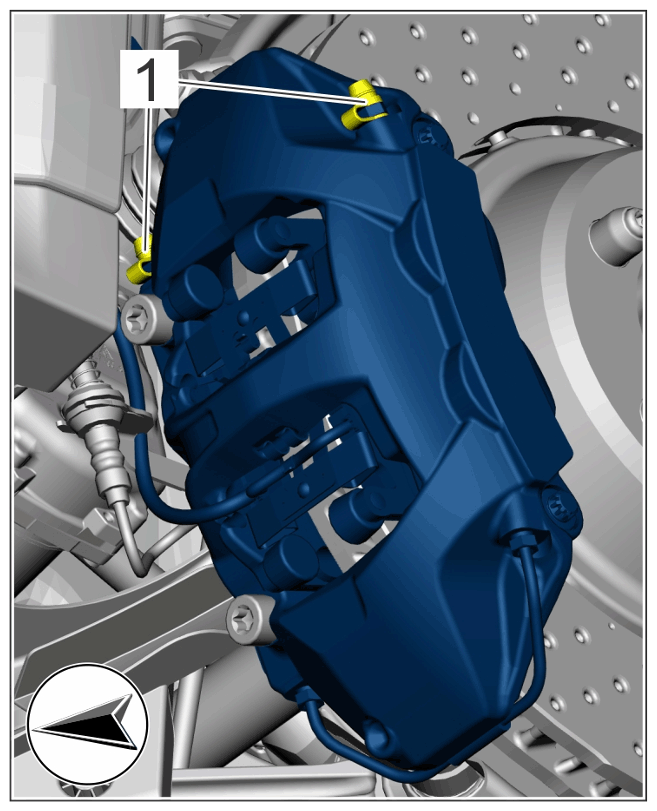

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bleeder valve to brake calliper rear
