Technical Values

Location	Description	Type	Basic value
Spreader device or wheel bearing housing	Item 2: Counters unscrew, M8 x 38/always replace screws after every removal	Initial tightening	10 Nm
Spreader device on wheel bearing housing	Item 2: Counters unscrew, M8 x 38/always replace screws after every removal	Final tightening	+ 60°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spreader device
Brake disc cover plate to wheel bearing housing (rear)	Item 2: M6 x 14/Observe tightening sequence!/always replace screws following removal	Initial tightening	4 Nm (2.9 ftlb.)
Brake-disc cover plate to wheel bearing housing (rear)	Item 2: M6 x 14/Observe tightening sequence!/always replace screws following removal	Final tightening	+ 45 (33 ftlb.) °

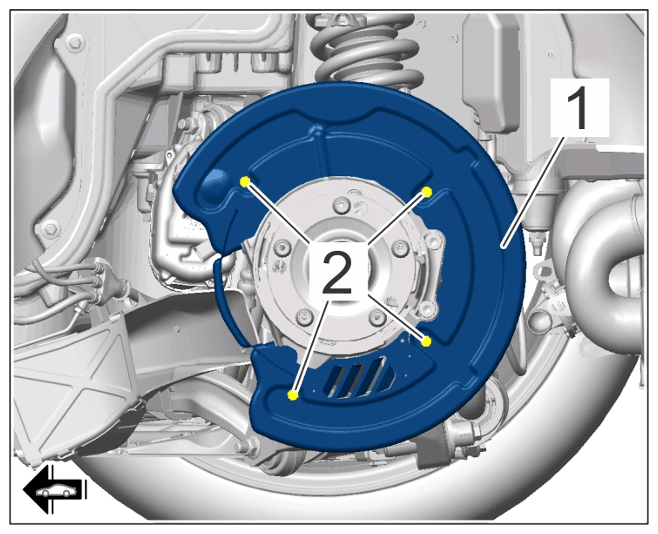

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear brake disc cover plate
