Removing Brake Shoes

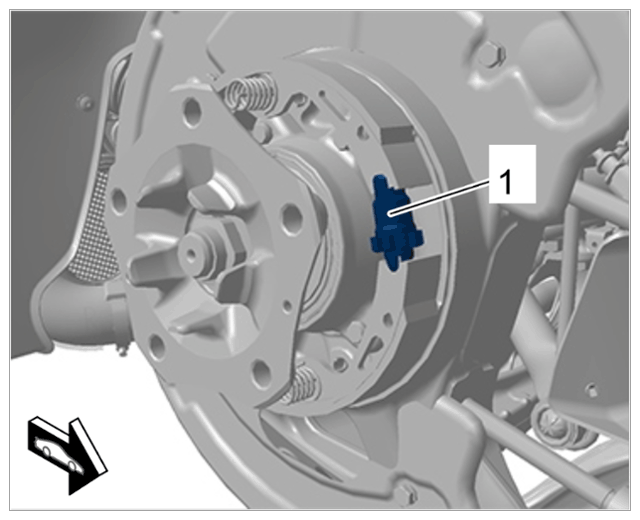

Mark installation position of the brake shoes and adjustment device.
Loosen adjustment device -1- completely using a suitable tool (e.g. a screwdriver).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjustment device for brake shoes
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
  → Do not reach into the danger area.

  → Relieve the tension on components before starting work.

  → Secure components to prevent them from loosening suddenly.

  → Wear protective gloves and goggles.

  → Be very careful when working on the brake system.

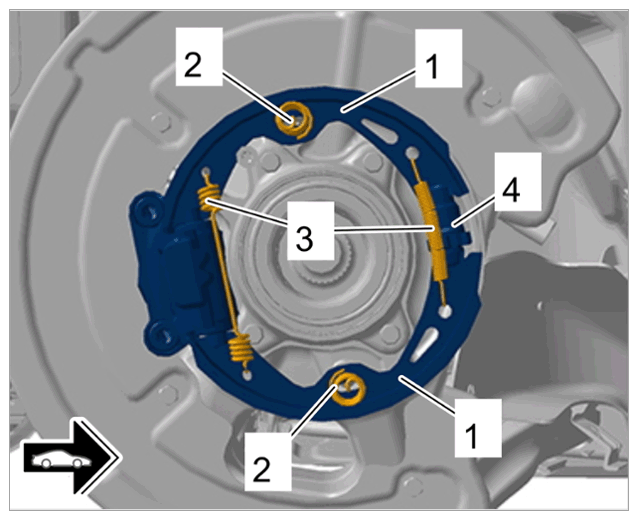

Remove brake shoes -1- .

3.1 Press compression springs -2- in slightly using a suitable tool, turn by 90° and remove them.
3.2 Disengage tension springs -3- .

3.3 Remove brake shoes -1- together with adjustment device -4- .

G15520016

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake shoes

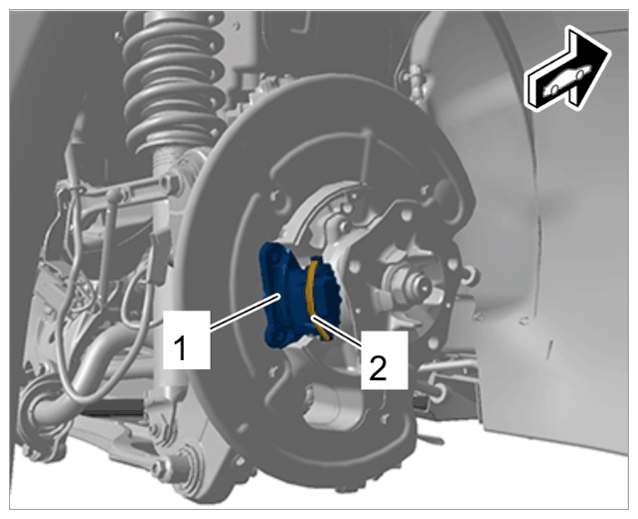

Secure spreader device (actuator) -1- of the electric parking brake using a tie-wrap -2- to prevent it from turning.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spreader device (actuator)
