Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Parking brake actuator on console Item 2: Internal hexagon roundhead bolt M5 x 20 Tightening torque 3 Nm

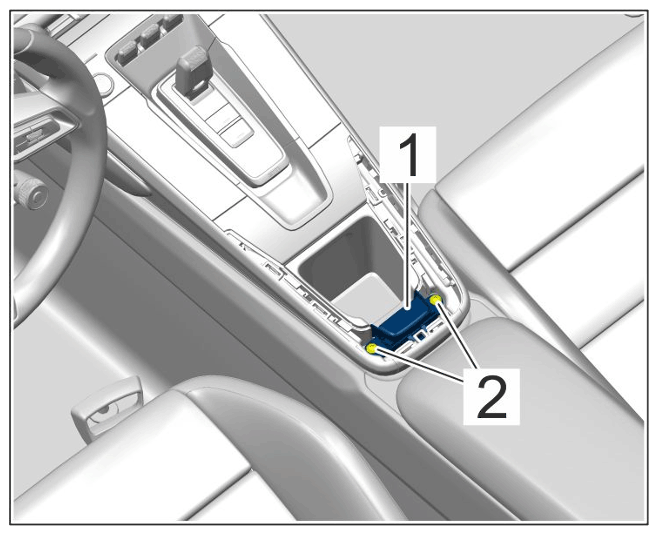

G15520006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for parking brake actuator
