Removing Actuator For Parking Brake

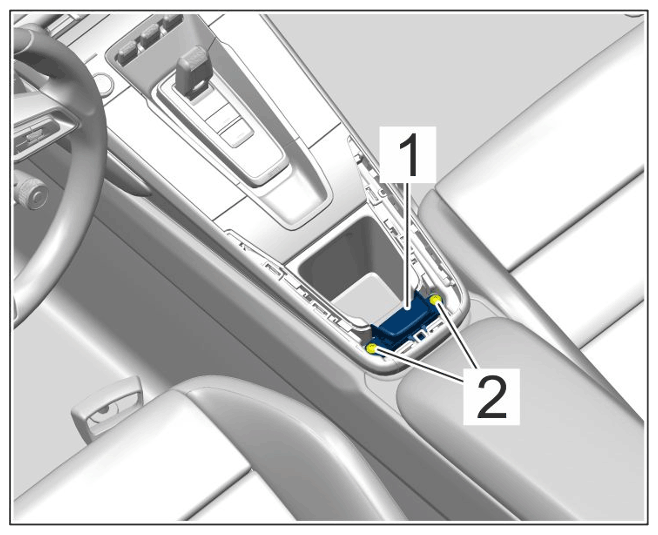

  1. Unscrew screws -2-  on parking brake actuator -1-  .
    G15520007Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for parking brake actuator

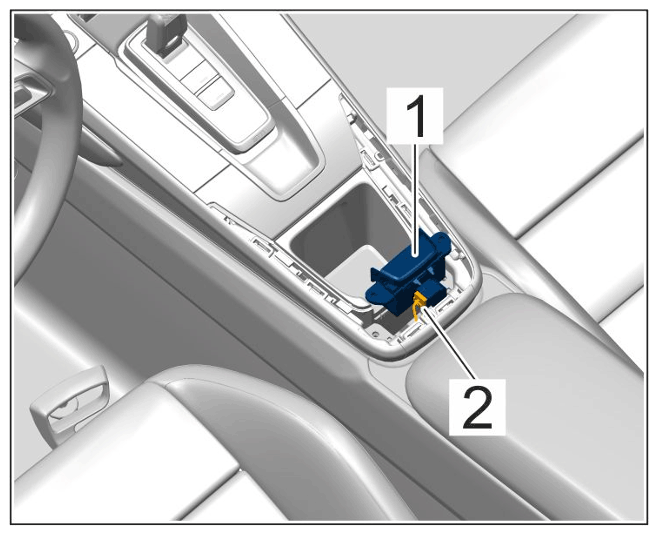

  2. Release and disconnect electric plug connection -2-  on parking brake actuator -1-  .
    G15520008Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for parking brake actuator
