Installing Actuator For Electric Parking Brake

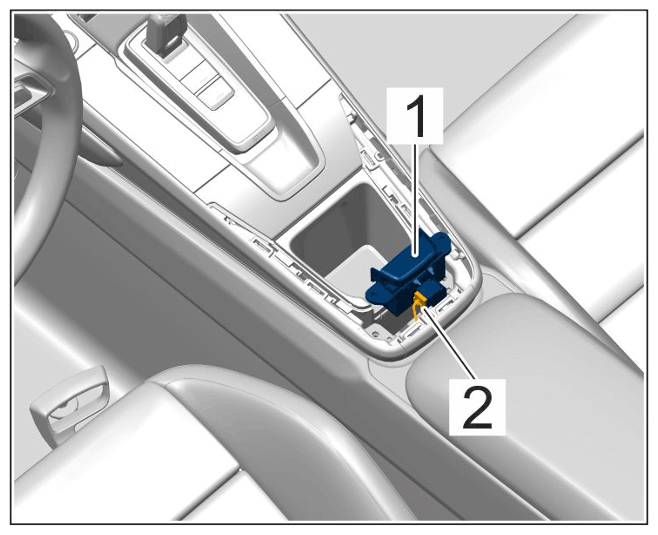

Push on and lock electric plug connection -2- for parking brake actuator -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for parking brake actuator

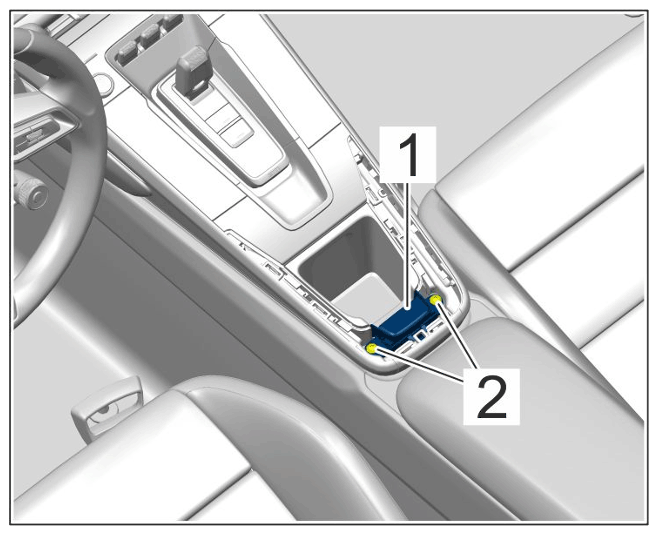

Tighten screws -2- on parking brake actuator -1- . > Tightening torque 3 Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for parking brake actuator
