Removing Rear Brake Disc

1. 1.1  Connect PIWIS Tester  to the vehicle; switch on PIWIS Tester.
2. 1.2  Switch on ignition.
3. 1.3  Start diagnostics.
4. 1.4  Select 'Porsche Stability Management (PSM)'  control unit.
5. 1.5  Select 'Drive links/tests'  tab.
6. 1.6  Select menu item 'Start brake pad change mode'  ; press F12  to continue.
7. 1.7  Follow the instructions in the Tester.

1. 2.1  Remove brake disc centering screws -2-  .
2. 2.2  Replace brake disc centering screws -2-  .
3. 2.3  Remove brake disc -1-  from the wheel hub.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

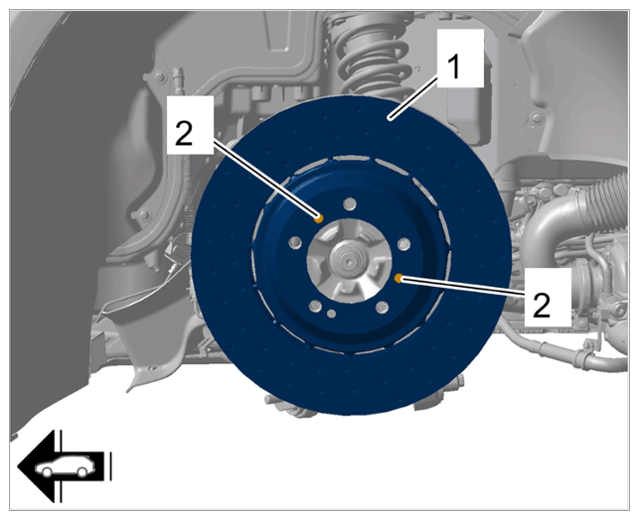

   Rear brake disc

1. 3.1  Unscrew wheel driver -2-  .
2. 3.2  Replace wheel driver -2-  with screws.
3. 3.3  Remove brake disc -1-  from the wheel hub.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

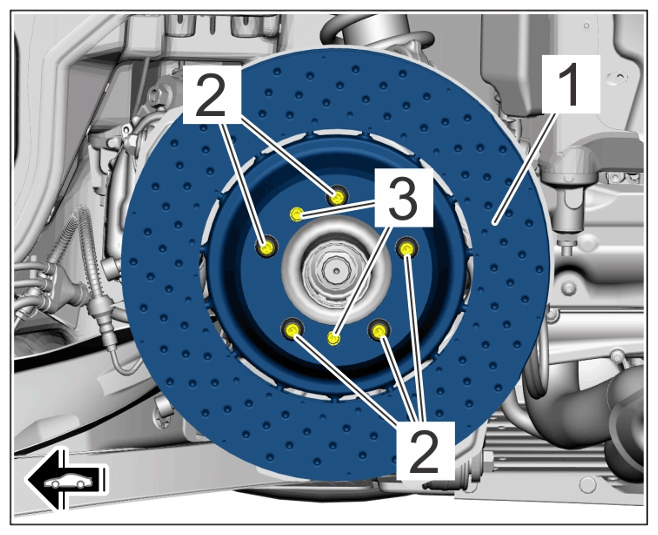

   Brake disc wheel driver

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc GT3

1. 4.1  Remove and replace brake disc centering screws -3-  .
2. 4.2  Remove brake disc -1-  from the wheel hub.
