Removing Brake Disc Front (Central Lock)

  1. Remove brake disc front -1-  .
    1. 1.1  Unscrew screws for wheel driver pins -2-  and replace them. Not valid for GT3 vehicles!

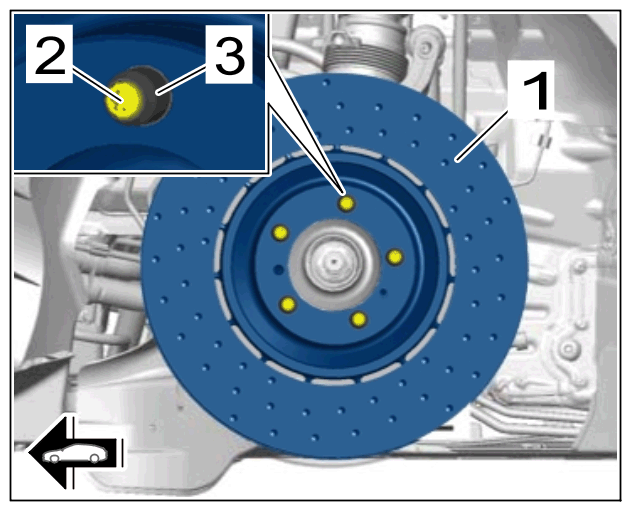

      G15519960Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc front with central lock (not GT3)

    2. 1.2  Remove and replace wheel drive pin -3-  . Not valid for GT3 vehicles!
    3. 1.3 On GT3 vehicles:  Unscrew centering screws -3-  and replace them.

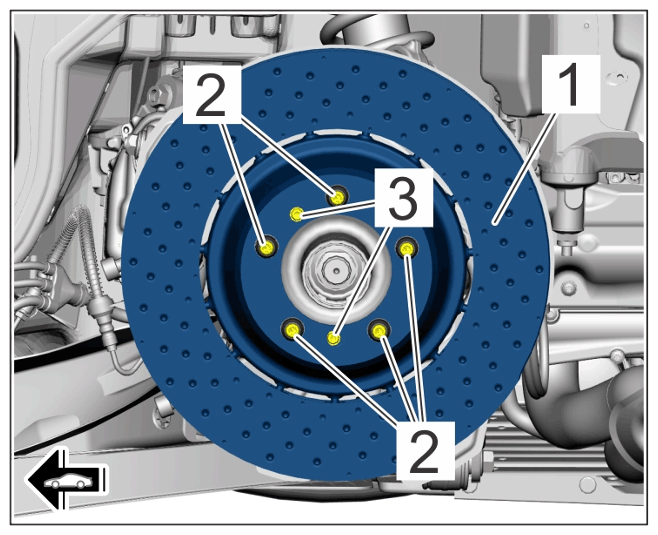

      G15519961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc GT3

    4. 1.4  Take off brake disc front.
