Removing Brake Disc Front: Notes

  1. Remove brake disc front -1-  .
    1. 1.1  Unscrew centering screws for brake disc front -2-  .
    2. 1.2  Take off brake disc front -1-  from the wheel hub.

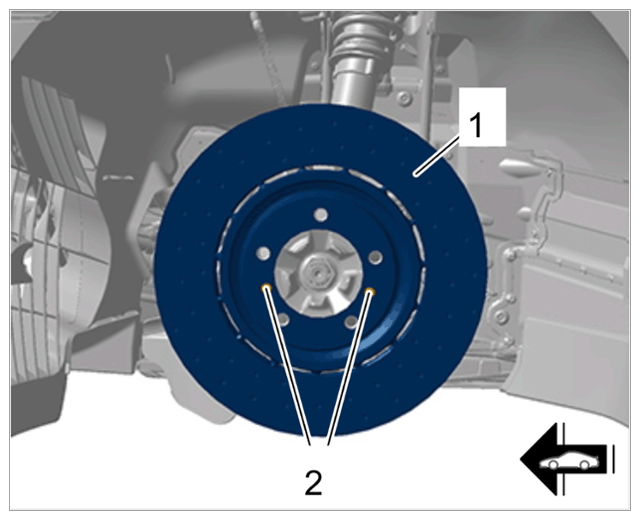

      G15519959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake disc front
