Installing Brake Disc Front: Notes

Prepare for installing the brake disc front.
1. 1.1 Check that all components are in perfect condition (visual inspection) and replace them if necessary.
2. 1.2 Clean the levelling and centering surfaces on the brake disc front and wheel hub.
3. 1.3 Apply a very thin coat of Optimoly TA (aluminum paste) to the centering surface on the wheel hub. Not relevant for grey cast-iron and PCCB brake discs on GT3 vehicles!

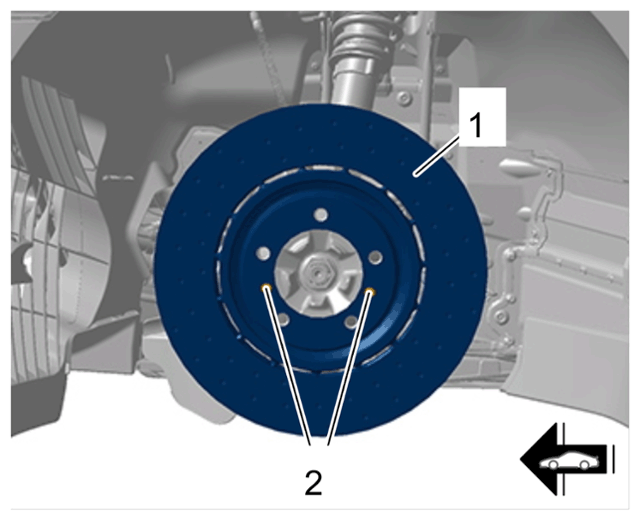

Install brake disc front -1- .

2.2 Fit and tighten centering screws for front brake disc -2- .

> Tightening torque 5 Nm (3.7 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc front
