Technical Values

Location	Description	Type	Basic value
Brake hose bracket to wheel bearing housing	Item 2: Hexagon-head bolt, M6	Tightening torque	10 Nm (7.5 ftlb.)

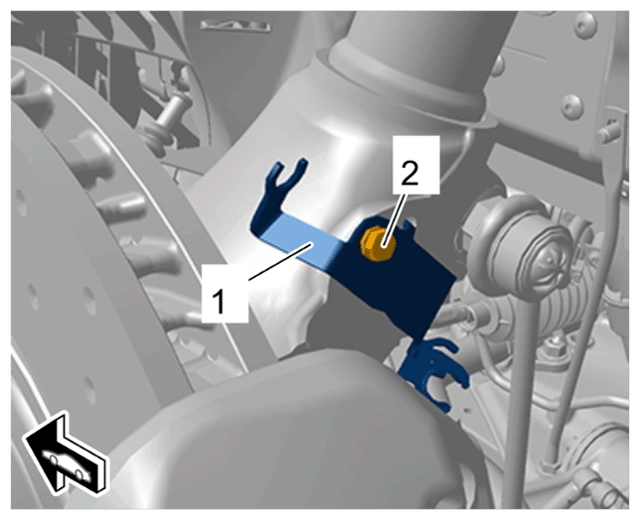

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket on wheel bearing housing
Brake calliper to wheel bearing housing (grey cast iron)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Initial tightening	30 Nm (22.1 ftlb.)
Brake calliper to wheel bearing housing (grey cast iron)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Final tightening	+ 7 5°

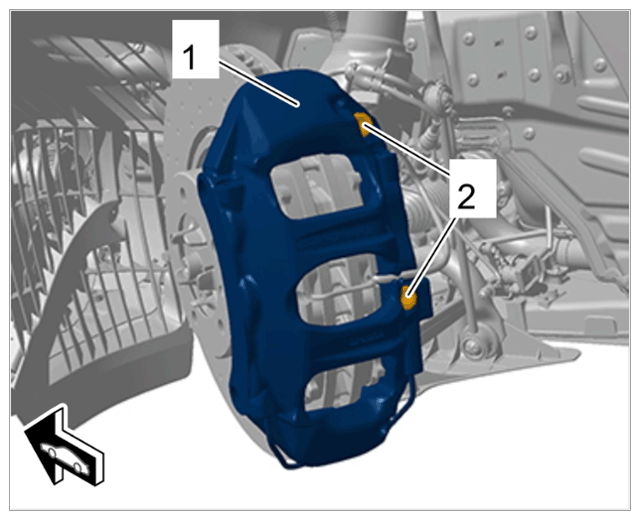

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper front
Brake calliper to adapter (PCCB)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Initial tightening	30 Nm (22.1 ftlb.)
Brake calliper to adapter (PCCB)	Item 2: Cheese head bolt, M12 x 1.5 x 85/always replace bolts following removal	Final tightening	+ 75°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper front
