Install Brake Calliper

Loosen tie-wrap to secure the brake calliper.
Position brake calliper on brake disc and wheel bearing housing/adapter (PCCB 992 without GT3) with new screws.
Tighten new screws on -2- brake calliper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front brake calliper
1. 3.1 Screws for grey cast-iron brakes:
  > Initial tightening 30 Nm (22.1 ftlb.)

  > Final tightening + 75°
2. 3.2 Screws for PCCB brakes:
  > Initial tightening 30 Nm (22.1 ftlb.)

  > Final tightening + 75°
Secure cable and cable plug for brake pad wear indicator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

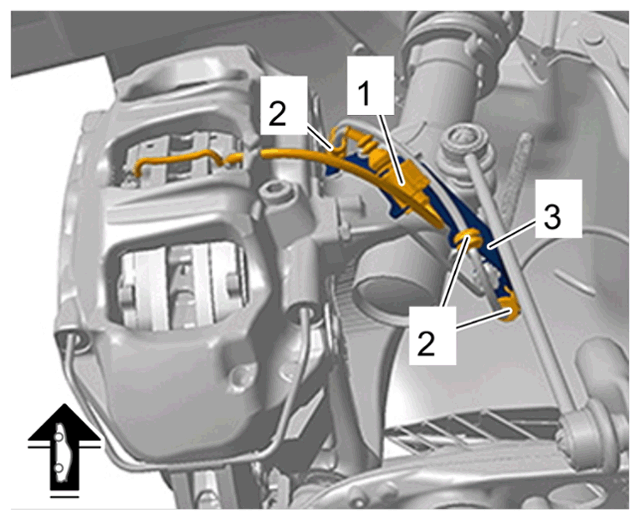

Electric lines for brake pad wear indicator
1. 4.1 Connect cable plug for -1- brake pad wear indicator and clip it in at the holder -3- .
2. 4.2 Engage retaining rubbers -2- in the holder -3- .

Position holder -1- with brake line and cable on wheel bearing housing and secure.

5.1 Fit and tighten screws on holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

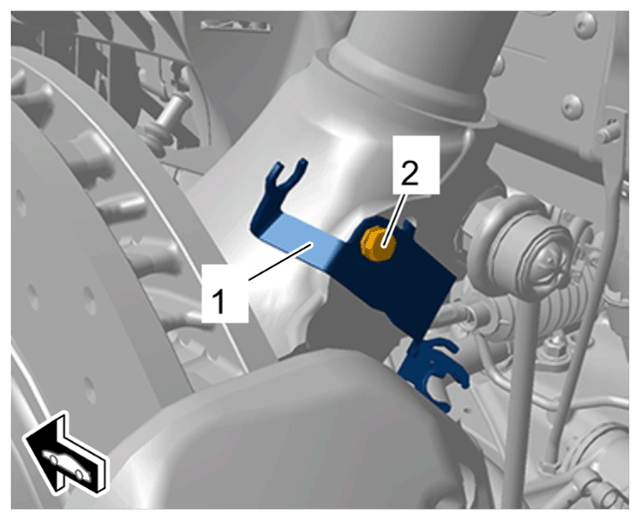

Bracket on wheel bearing housing

> Tightening torque 10 Nm (7.5 ftlb.)

Press the brake pedal several times to fit the disc brake pads on the brake disc again.

Information

The brake fluid level must be between the Min and Max markings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

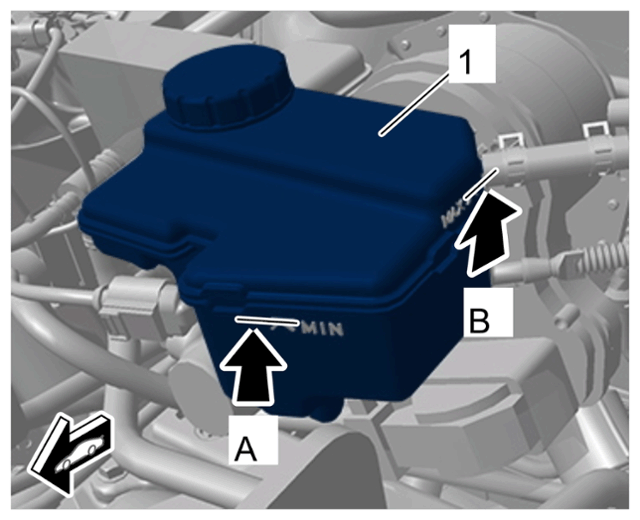

Min/Max markings on brake fluid reservoir

arrow A	Minimum marking (Min)
arrow B	Maximum marking (Max)
