Installing Brake Disc Air Guide (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

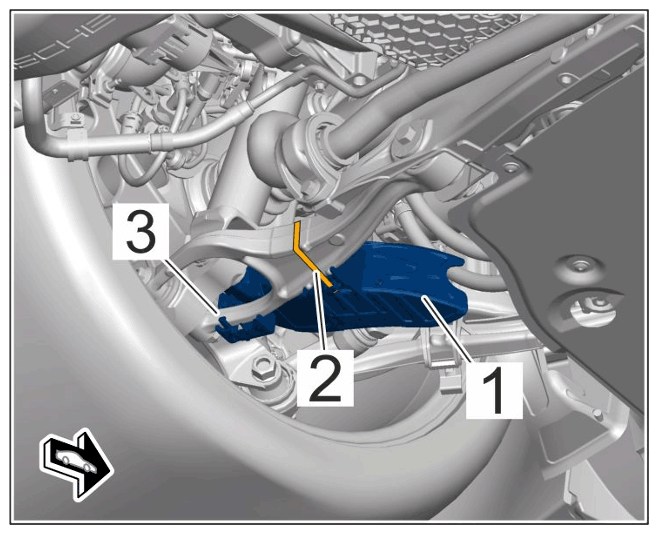

Mounting for brake disc air guide

1. 1.1  Secure retaining clip -3-  on trailing arm.
2. 1.2  Tighten tie-wraps -2-  using > VAS 6927 - Tie-wrap pliers  .
