Installing Brake Disc Air Guide (Rear)

  1. Install brake disc air guide -1-  .

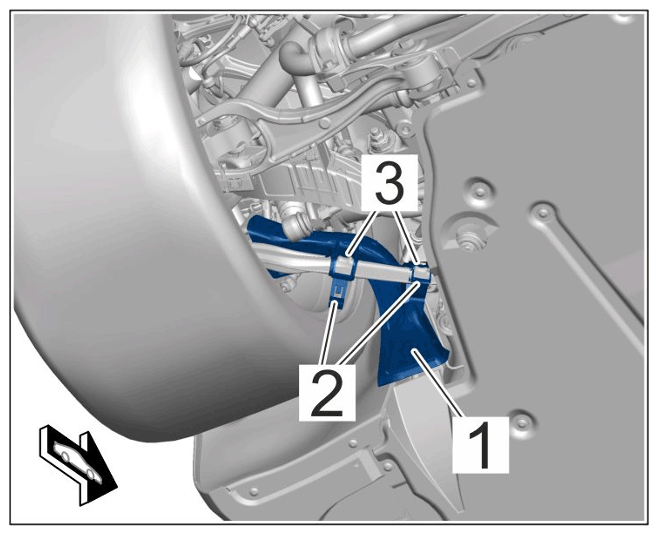

    G15519904Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for brake disc air guide

    1. 1.1  Align clips -2-  with the pins -3-  .
    2. 1.2  Secure clips -2-  (clips must engage fully).
