Install PCCB Brake Disc Air Guide (Rear)

  1. Install brake disc -1-  air guide.

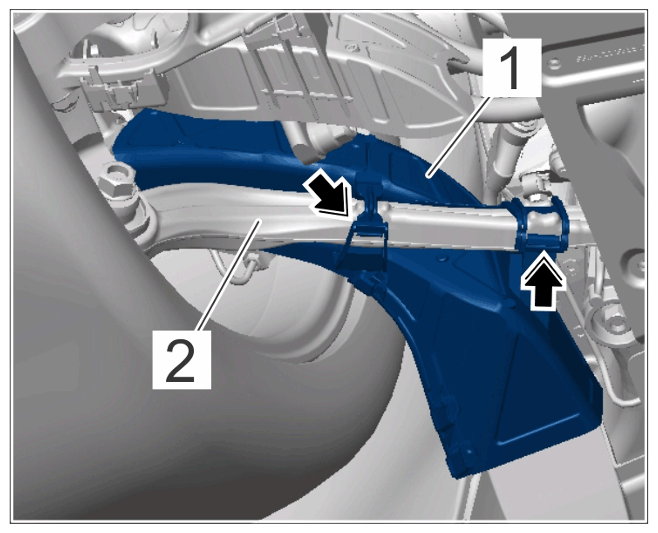

    G15519926Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake-disc air guide

    1. 1.1  Position the air guide -1-  on the trailing arm -2-  and close the fastening clips -Arrows-  .
