Removing Brake Disc Air Guide (Front)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

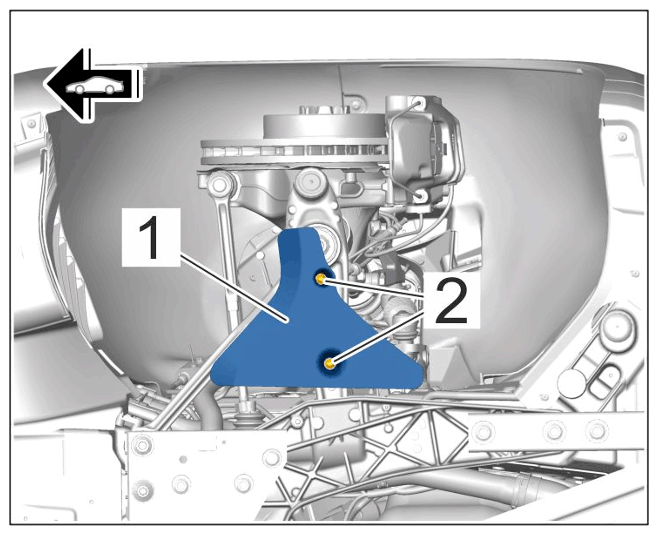

Mounting for cover on lower trailing arm

1. 1.1  Unscrew and remove screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

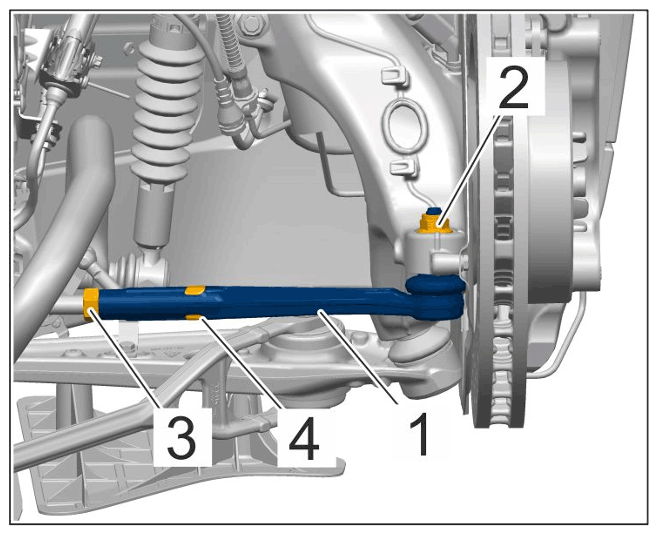

Mounting for tie-rod ball

1. 2.1  Unscrew nut -2-  and counter using > 9546 - screwdriver  at the ball-joint pin.
2. 2.2  Press off the tie-rod ball using > 9560 - press-out tool-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

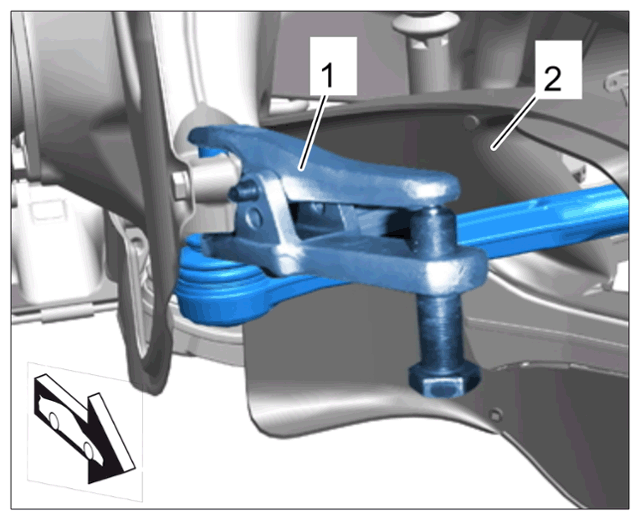

   Press-out tool 9560 on tie-rod ball

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

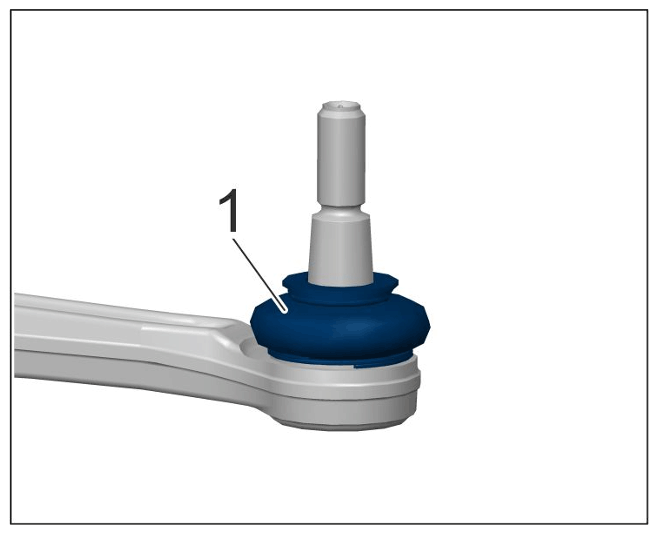

Tie-rod ball boot

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

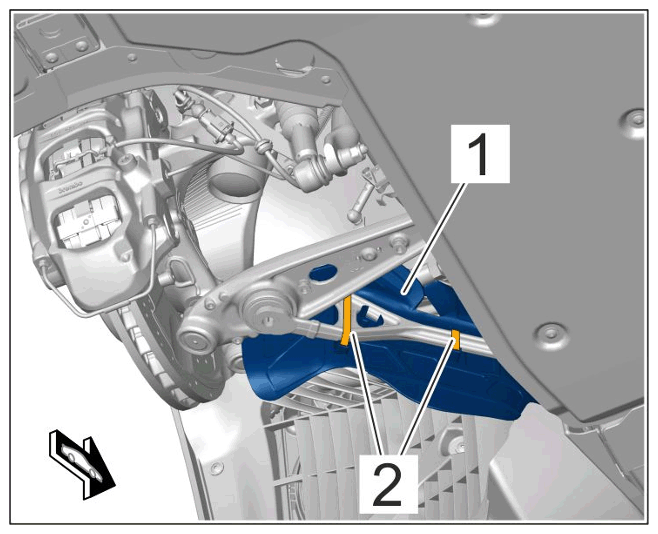

Mounting for brake disc air guide

1. 4.1  Cut tie-wrap -2-  .
