Installing Brake Disc Air Guide (Front)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for brake disc air guide

1. 1.1  Tighten tie-wraps -2-  using > VAS 6927 - Tie-wrap pliers  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

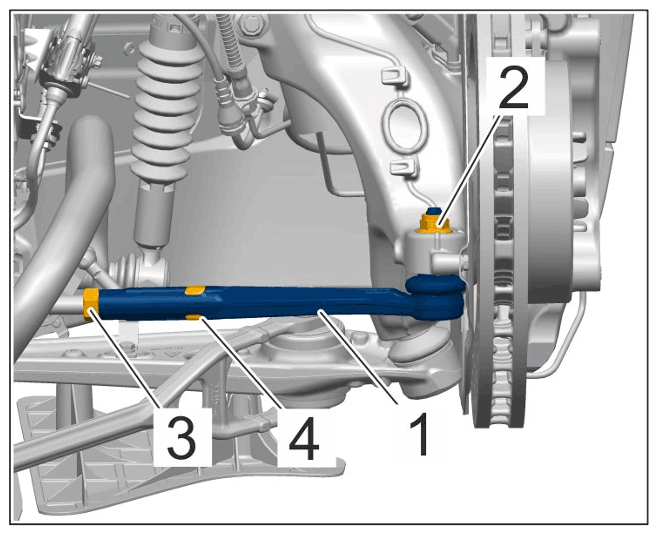

Mounting for tie-rod ball

1. 2.1  Tighten nut -2-  . > Tightening torque 85 Nm (62.7 ftlb.)
2. 2.2  Seal threaded joint securing tie rod to wheel bearing housing with wax as shown in -Illustration-  . Use Pfinder AP14/4 for this (see Parts Catalogue - PET)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

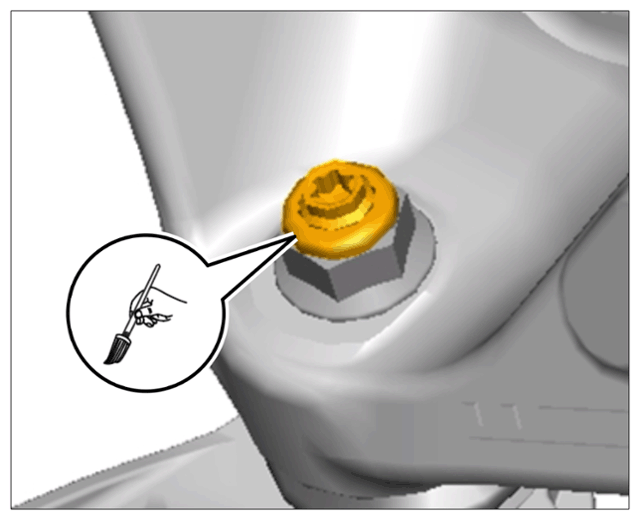

   Applying wax on marked area (shown on threaded joint securing lower trailing arm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

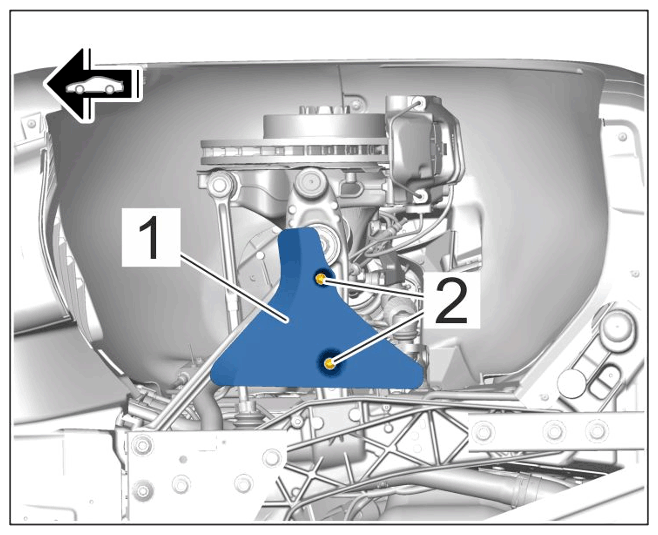

Mounting for cover on lower trailing arm

1. 3.1  Tighten screws -2-  . > Tightening torque 10 Nm (7.5 ftlb.)
