Removing Mounting Saddle

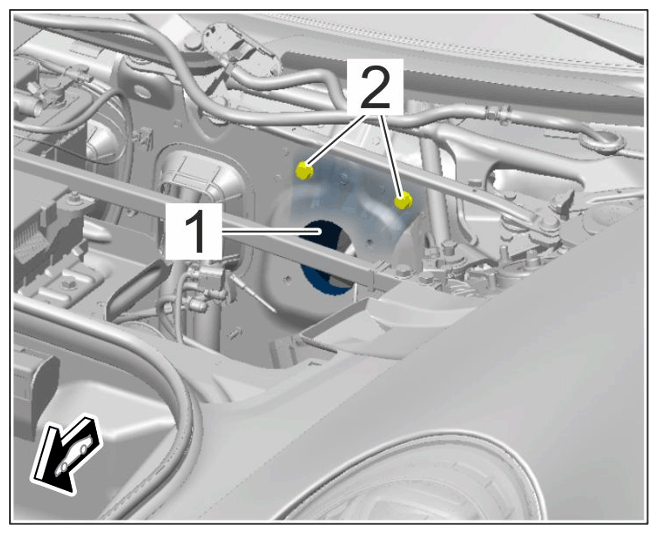

Remove screws -2- to separate mounting saddle -1- from firewall upper section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on mounting saddle

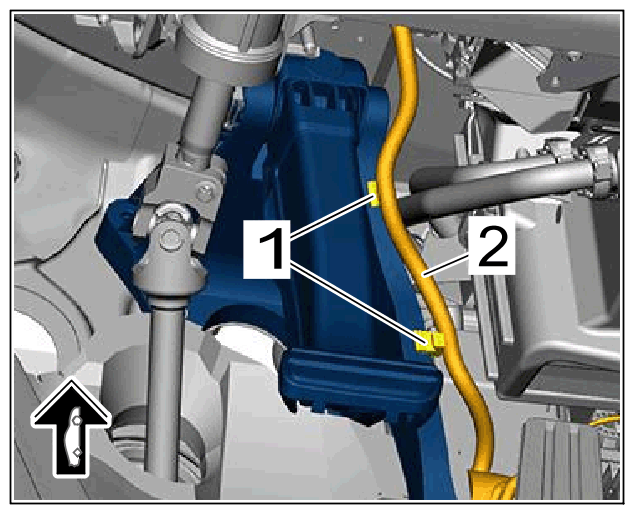

Unclip clips -1- and move electric line -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

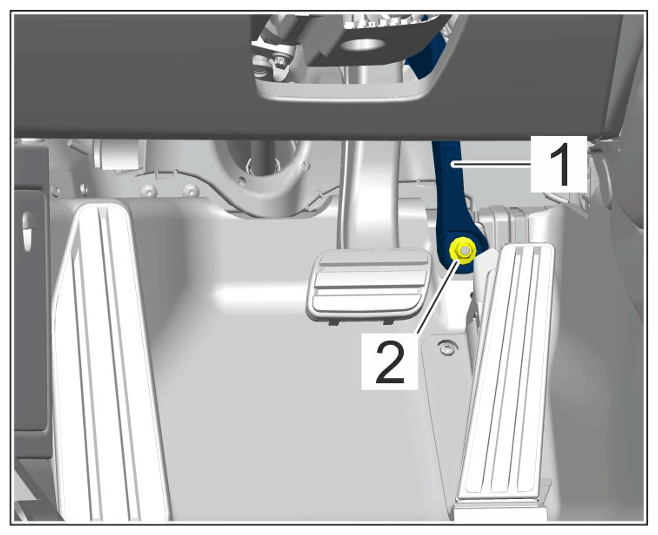

Remove mounting saddle -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting saddle nut
1. 3.1 Unscrew nut -2- .
2. 3.2 Guide mounting saddle -1- out of the footwell.
