Preliminary Work

Remove front footwell outlet vent (driver's side).
805519 REMOVING AND INSTALLING FRONT FOOTWELL OUTLET VENT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

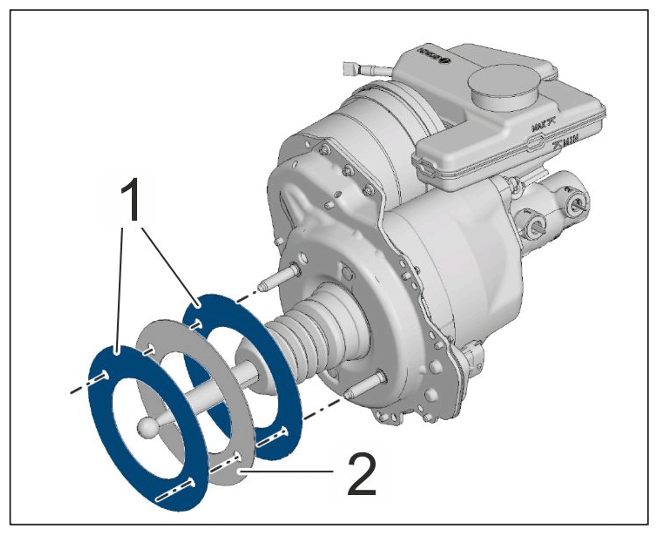

Brake booster seals

1 Seals

2 Spacer

Information
- The brake booster must be removed so that seals -1- can be replaced.
- As soon as the brake booster is removed from the firewall, the seals -1- must be replaced .
Remove brake booster.
477019 REMOVING AND INSTALLING BRAKE BOOSTER
