Installing Mounting Saddle

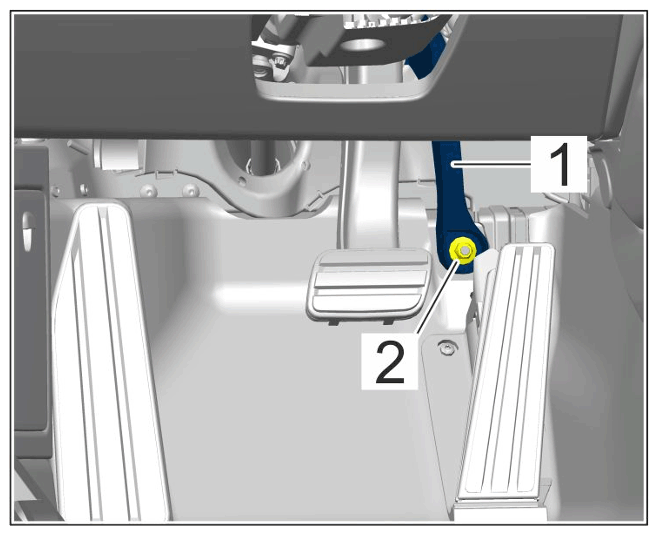

Move mounting saddle -1- into installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting saddle nut
1. 1.1 Fit nut -2- , but do not tighten yet.

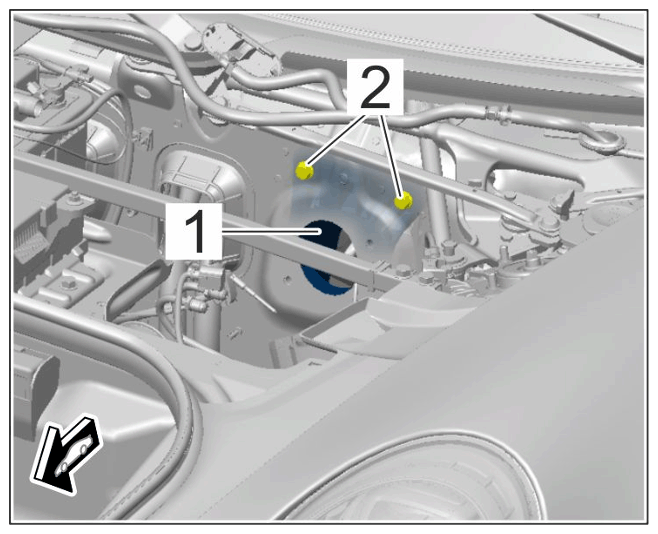

Screw in and tighten screws -2- .
> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on mounting saddle
Tighten nut -2- .
> Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower mounting saddle nut

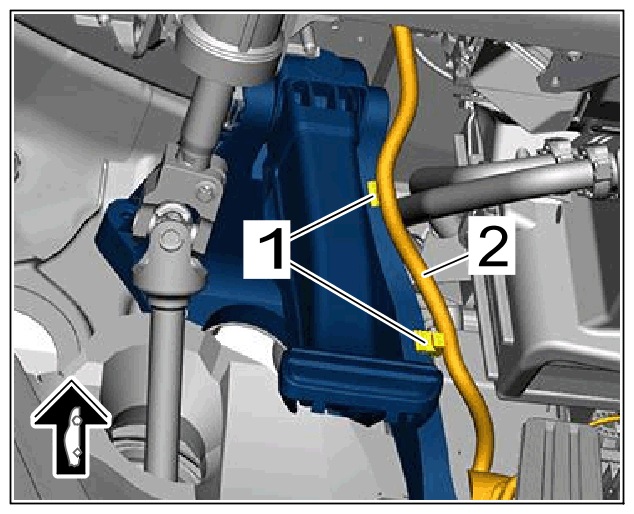

Position electric line -2- and clip in clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
