Removing Brake Pedal

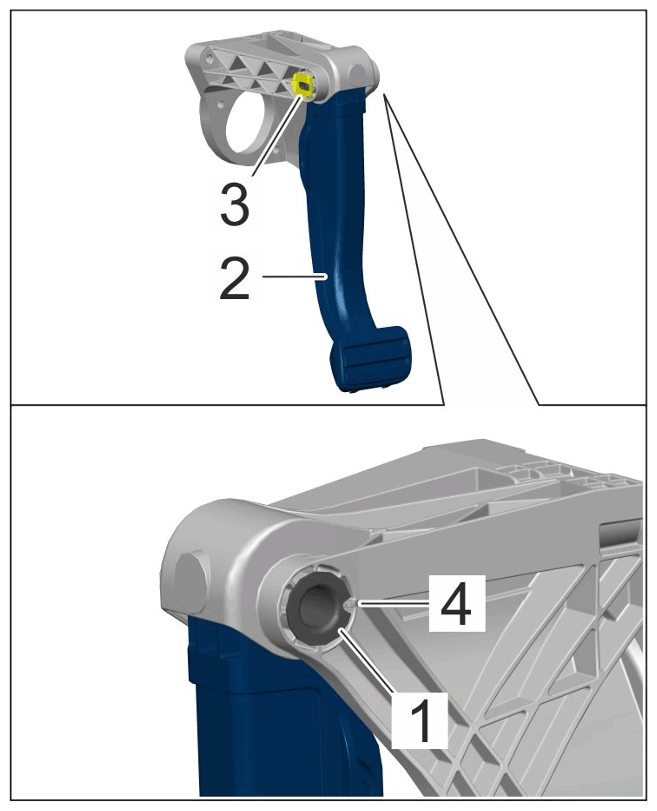

  1. Remove pedal bearing shaft -1-  from the brake pedal -2-  .
    G15519890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pedal bearing shaft

    1. 1.1  Loosen lock -3-  .
    2. 1.2  Pull pedal bearing shaft -1-  out to the right.
