Installing Brake Pedal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

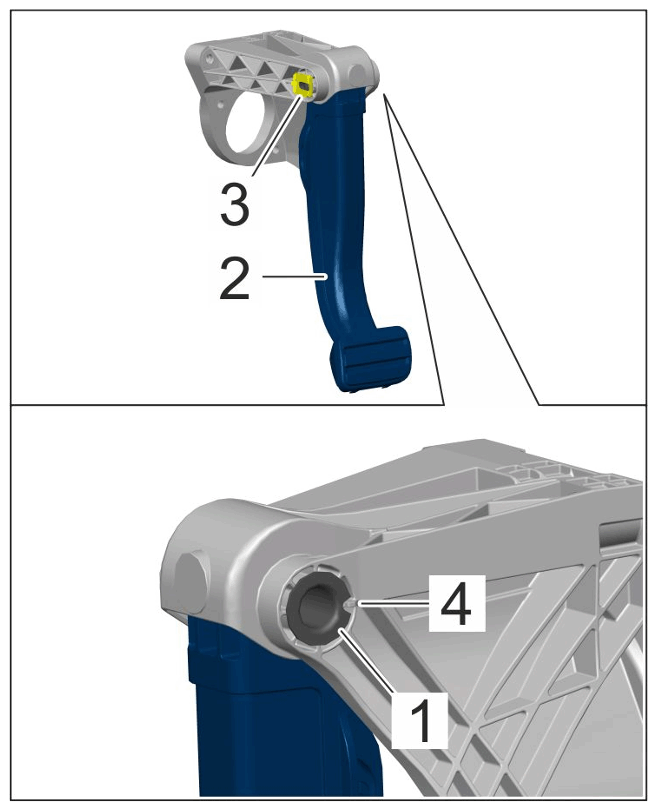

Pedal bearing shaft

1. 1.1  Align pedal bearing shaft -1-  in accordance with the marking -4-  and guide it in.
2. 1.2  Secure the lock -3-  .
