Removing Roof Sun Blind

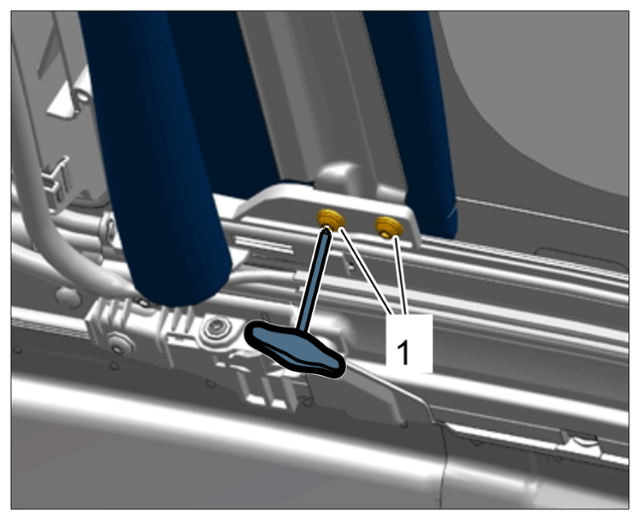

Unscrew screws for transverse bow -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transverse bow mounting
Carefully remove transverse bow.

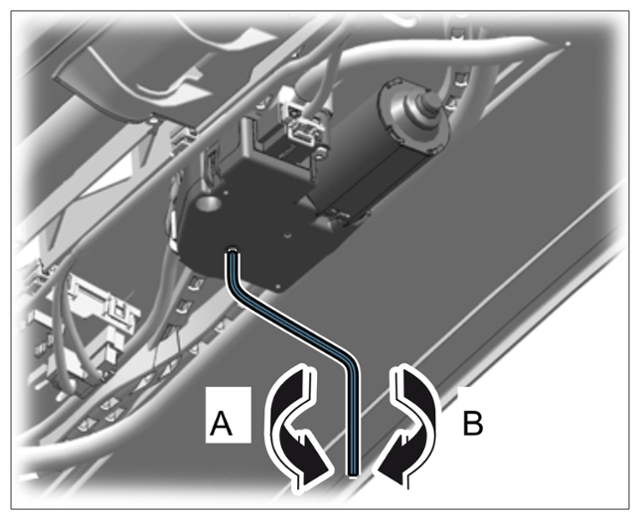

Move sun blind motor as far as it will go manually using the crank. -arrow A-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind

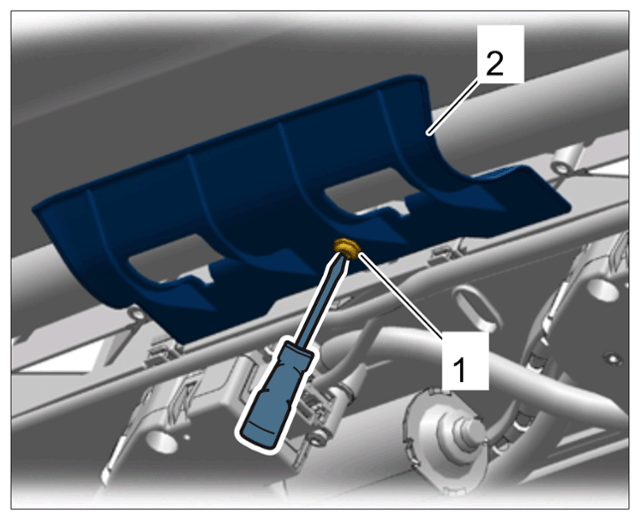

Unscrew screw -1- from the sun blind well -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind well
Remove sun blind well in a downward direction.
Remove sun blind carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

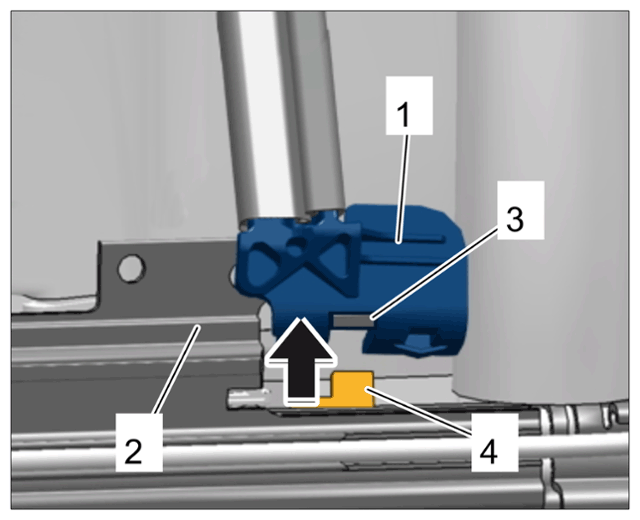

Sun blind carrier
1. 6.1 Move sun blind carrier -1- out of the guide rail -2- .
2. 6.2 Pull sun blind carrier -1- up out of the sun blind coupling -4- . -Arrow-

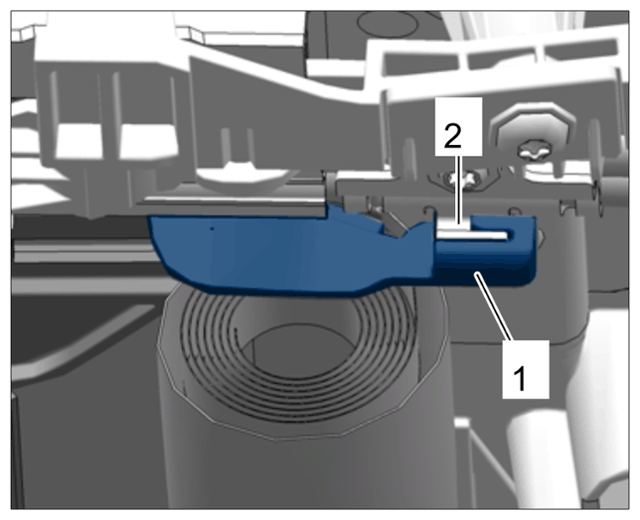

Disengage fabric centering device -1- at the rear of the retaining clip -2- for the guide tube.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fabric centering device
Remove sun blind in a downward direction.
