Installing Roof Sun Blind

Information

If the electric drive for the sun blind was removed, make sure that the sun blind carriers at the left and right are parallel to each other. The sun blind coupling must be moved out of the guide rail.

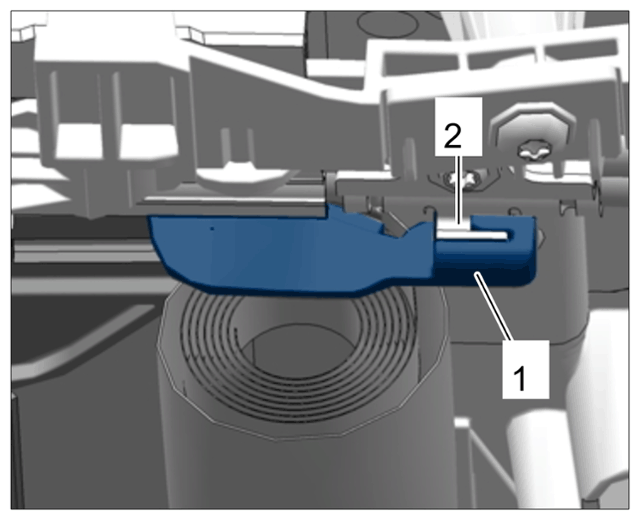

1. Insert sun blind and attach fabric centering device -1-  to the retaining clip for the guide tube -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fabric centering device

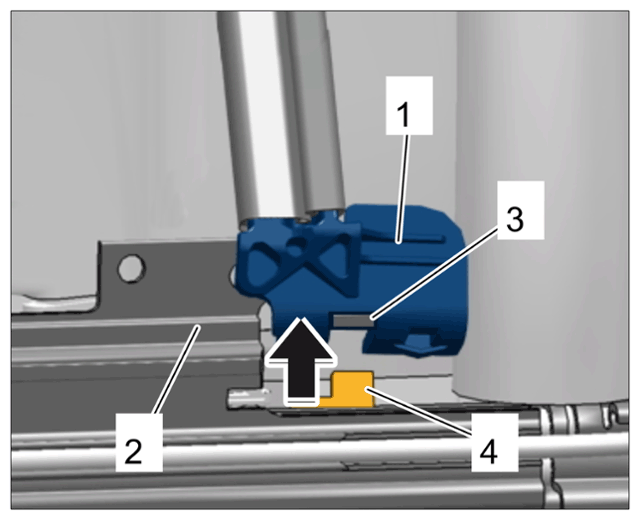

2. -1-  Install sun blind carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind carrier

   1. 2.1  Insert sun blind carrier -1-  into the sun blind coupling -4-  from above.
   2. 2.2  Slide sun blind carrier -1-  into the guide rail -2-  .

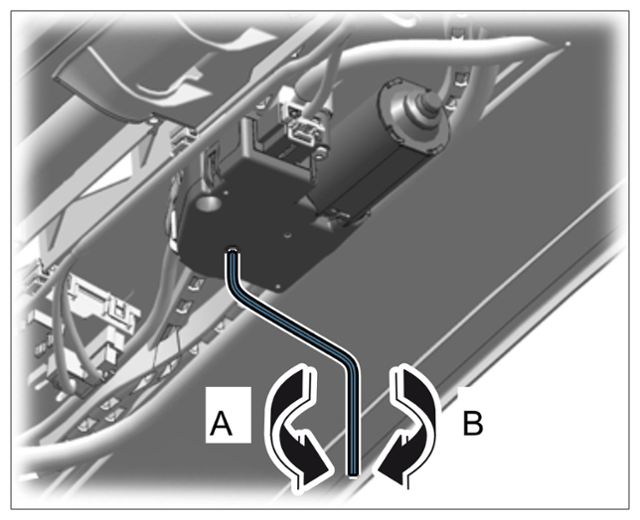

3. Move sun blind motor to the Close position manually using the crank. -arrow B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind

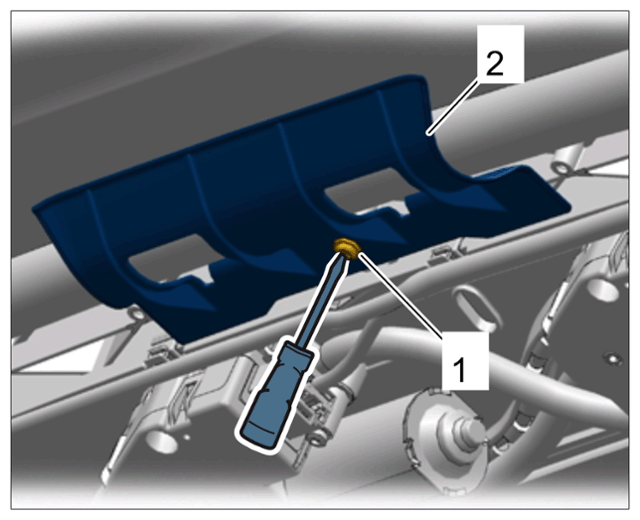

4. Position sun blind well -2-  and secure by tightening screw > Tightening torque 3 Nm (2 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun blind well

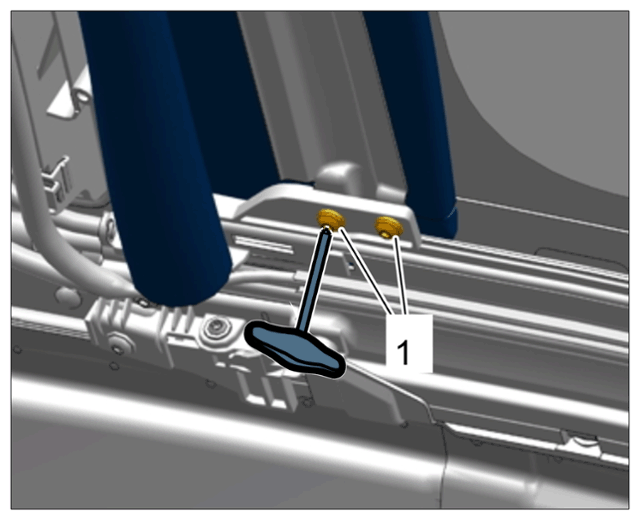

5. Position transverse bow and secure by tightening screws -1-  to > Tightening torque 2.5 Nm (1.75 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Transverse bow mounting
