Removing Control Unit For Air Deflector

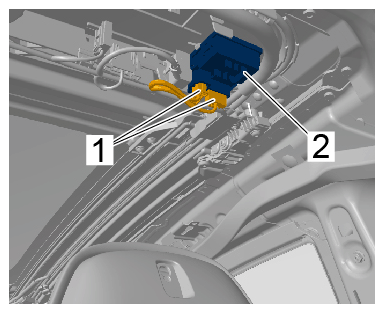

  1. Release and disconnect electric plug connections -1-  on control unit for air deflector -2-  .
    G15533132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    control unit for air deflector

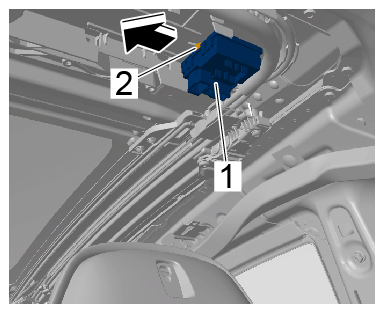

  2. Release locking lug -2-  and remove control unit for air deflector -1-  from the guide -arrow-  .
    G15533133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit for air deflector
