Checking Water Drains At The Front

Find the installation position of the front water drains.
6048IN WATER DRAIN
Remove front cover -1- .
> WM, 508719 REMOVING AND INSTALLING COVER - information on "Removing"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

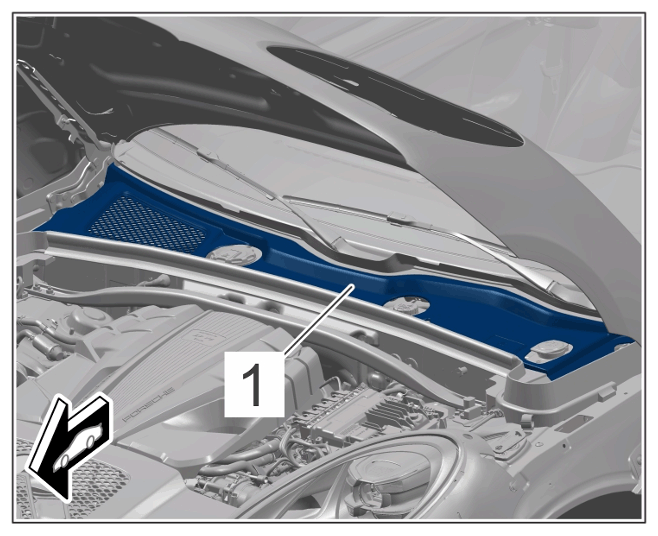

Front cover (shown on the Macan)
Check for dirt in the area around the water drains -1- at the front and remove it if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

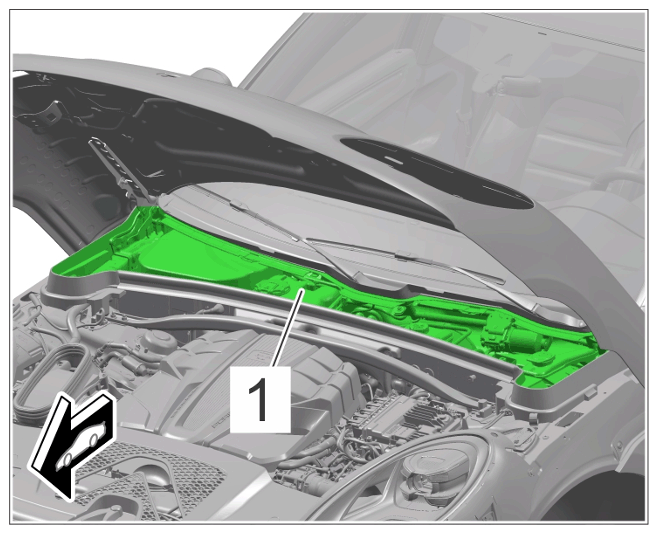

Area around water drains (shown on the Macan)
Install front cover -1-
> WM, 508719 REMOVING AND INSTALLING COVER - information on "Installing"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover (shown on the Macan)
