Removing Seal For Sliding-Roof Panel

Information

If the support frame on the sliding-roof panel is detached or damaged, the sliding-roof panel must be replaced. The support frame may not be repaired or bonded.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

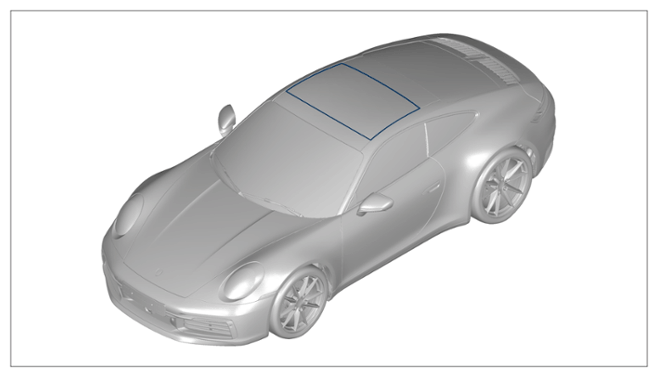

Installation position

1. Open the sliding-roof panel
2. Pull seal -1-  off the sliding-roof panel at one corner.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

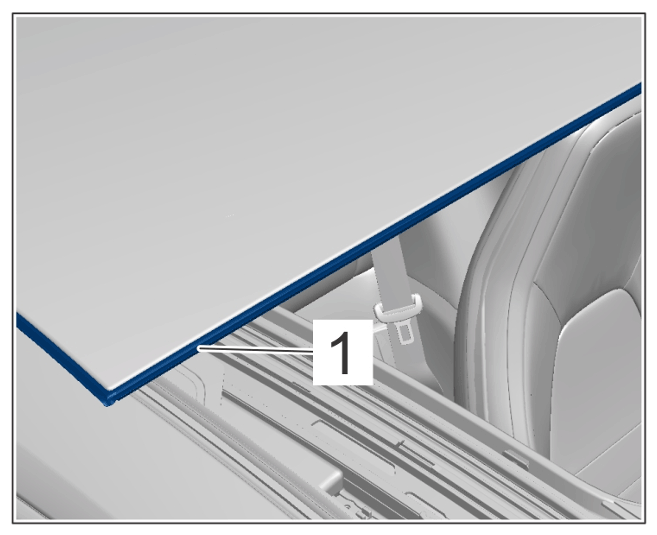

   Seal for sliding-roof panel

3. Pull seal for sliding-roof panel off the sliding-roof panel all the way around.
