Removing Seal For Sliding Roof

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

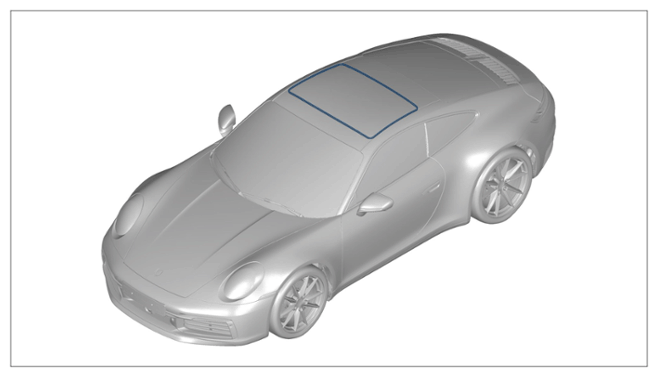

Installation position

1. Pull of seal on sliding-roof panel -1-  all the way around.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

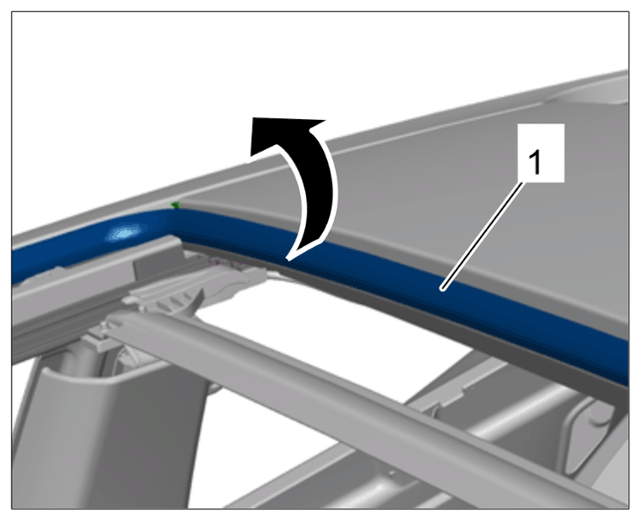

   Seal on sliding roof

2. Remove adhesive residue.
   1. 2.1  Remove adhesive residue all the way around.
   2. 2.2  Clean bonding surfaces -1-  with isopropanol.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

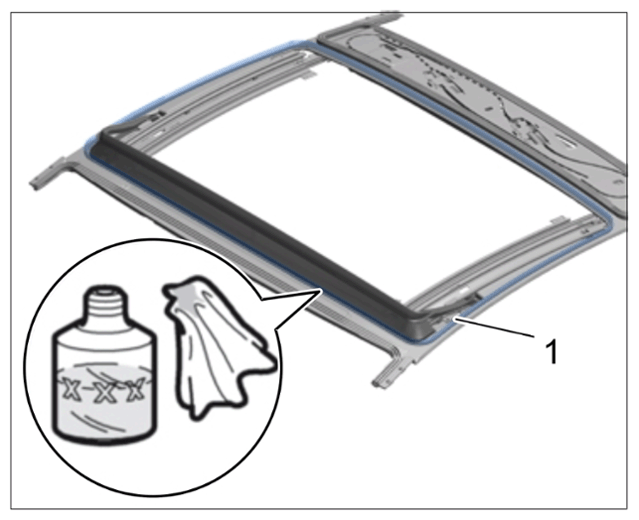

      Adhesive residue

3. Apply primer.
   1. 3.1  Apply primer to the bonding surface -1-  and leave it to dry off.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

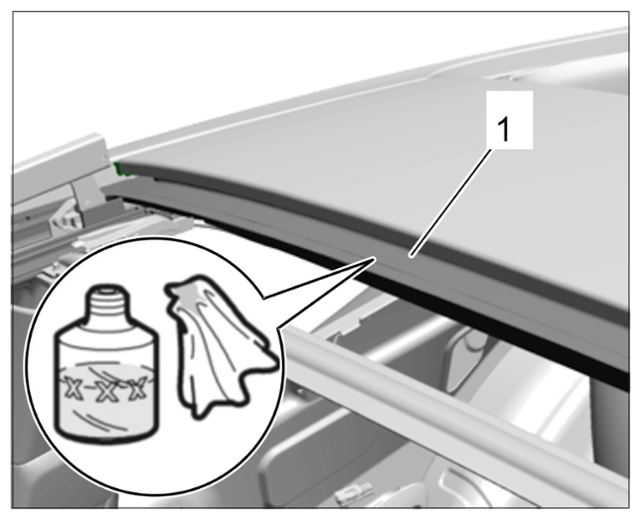

      Applying primer

      Location	Description Type	Basic value	Tolerance
      Primer	Drying Time	10 Minute
