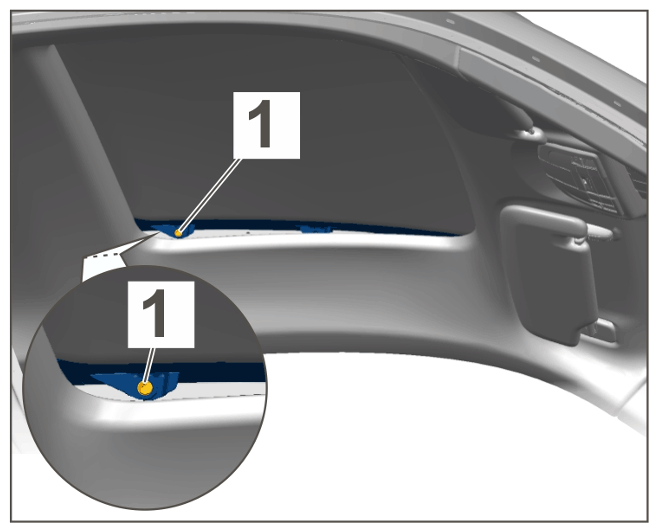

| Screw for sliding-roof panel, rear |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear screw |
|
|
|
|
|

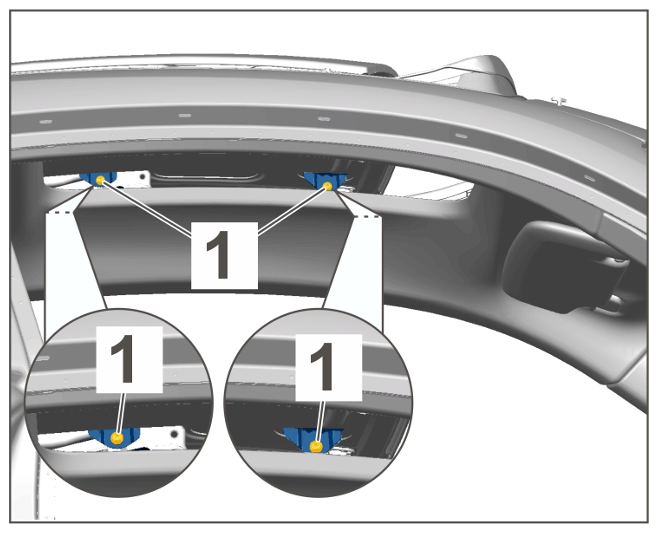

| Screws for sliding-roof panel, centre and front |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Centre and front screw |
|
|
|
|
|
| Sliding-roof panel |
|
Length |
15 cm |
|
|
