Removing Sliding-Roof Panel

Information

If the support frame on the sliding-roof panel is detached or damaged, the sliding-roof panel must be replaced.

The support frame may not be repaired or bonded.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

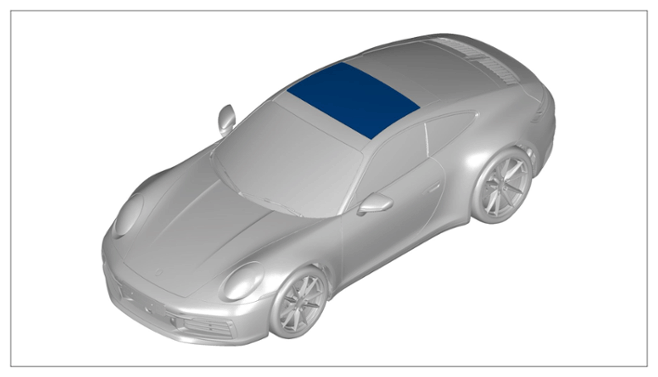

Installation position

1. Move roof panel to tilting position.
2. Unscrew rear screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

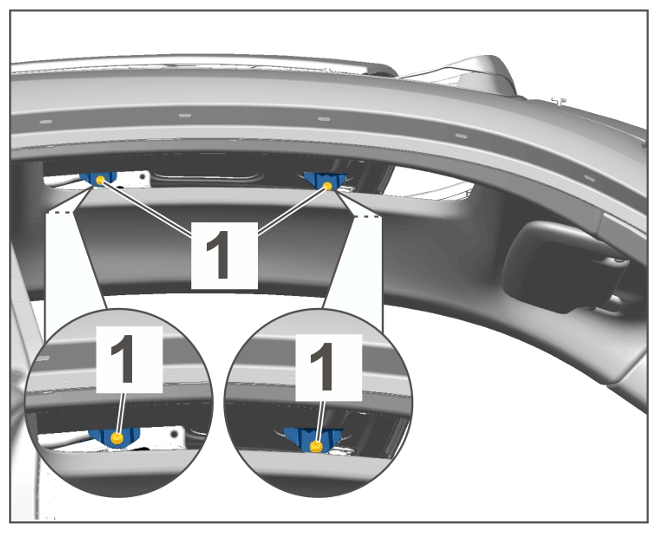

   Rear screw

3. Open the panel by approx. > Length 15 cm  .
4. Unscrew centre and front screw.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

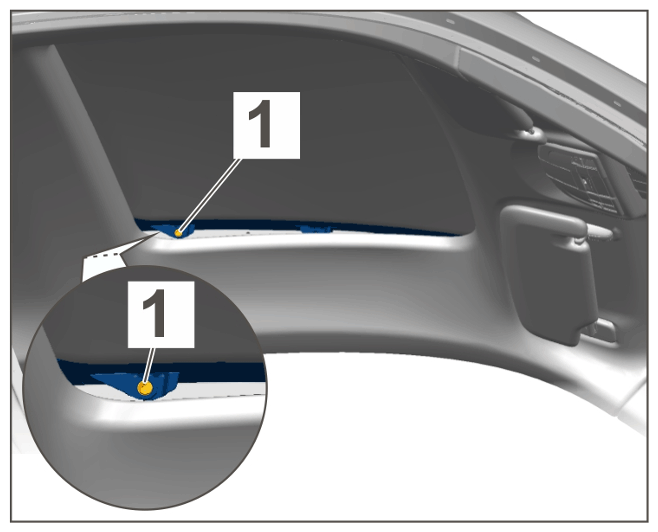

   Centre and front screw

5. Lift off lid.
