Adjusting Sliding-Roof Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

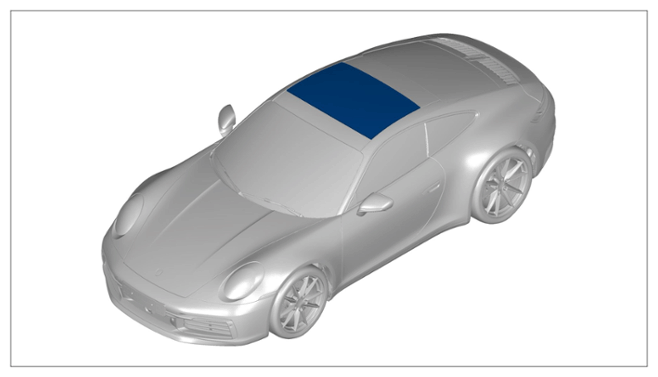

Installation position

1. Check sliding-roof panel gap dimensions in X-Y-Z direction.

   0X00IN VEHICLE COORDINATE SYSTEM

2. Tighten screws hand-tight.
   1. 2.1  Move roof panel to tilting position, loosen rear screw -1-  and fit again hand-tight.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

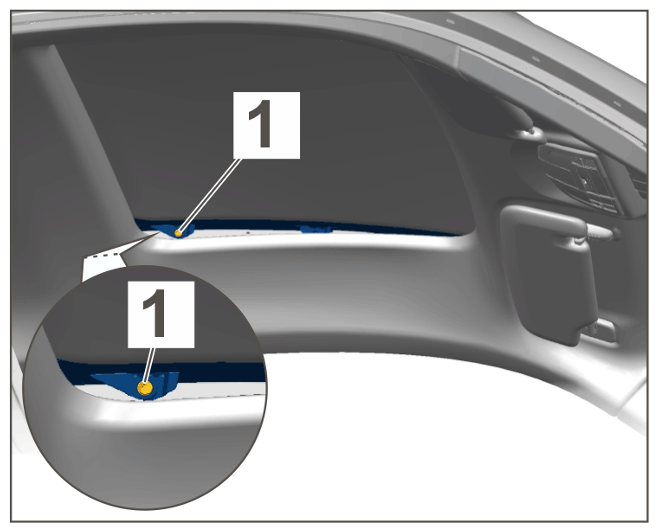

      Rear mounting

   2. 2.2  Open the panel by approx. > Length 15 cm  .
   3. 2.3  Loosen centre and front screw -1-  and fit again hand-tight.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

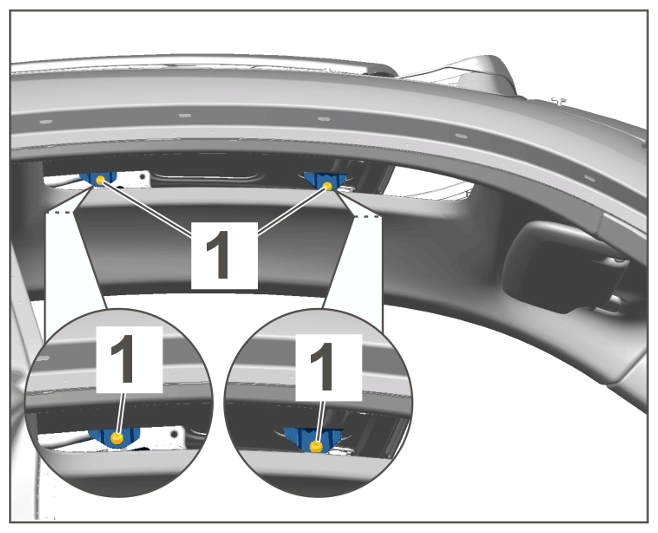

      Centre and front mounting

3. Adjust gap dimensions.

   >  WM, 5X00IN41 GAP DIMENSION

4. Tighten screws to > Tightening torque 8 Nm (6 ftlb.)  and > Tightening torque 8 Nm (6 ftlb.)  .
