Removing Powered Sunroof Mechanism

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

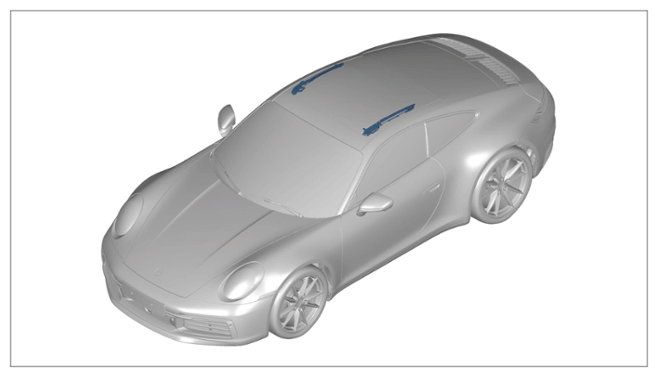

Installation position

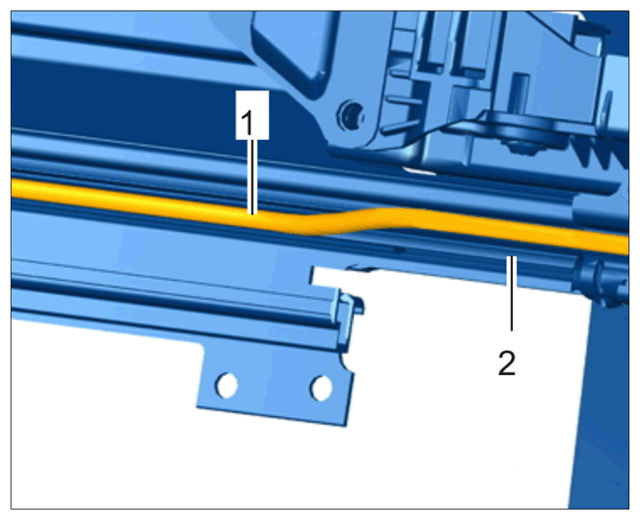

1. Pull wiring harness -1-  out of the guide rail -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for electric drive (shown on the 991)

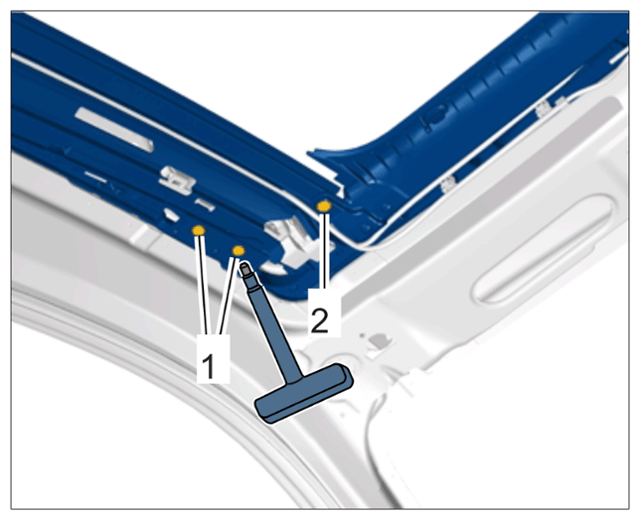

2. Unscrew and remove screws -1-  and -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Powered sunroof mechanism, front (shown on the 991)

3. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Powered sunroof mechanism, rear (shown on the 991)

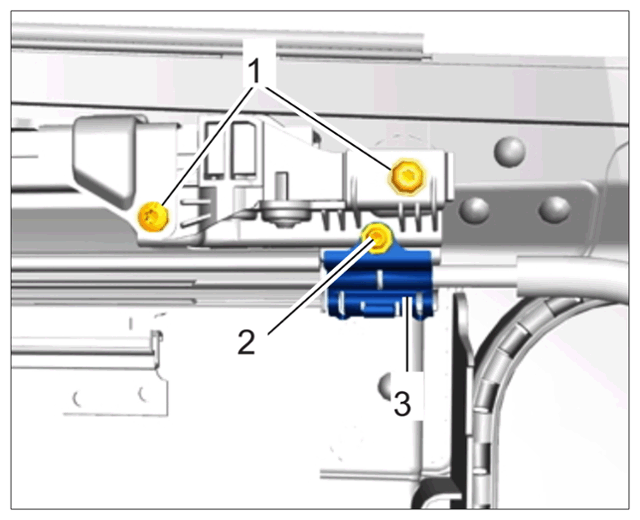

4. Unscrew screw on retaining bracket for drive pipe -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Powered sunroof mechanism, rear (shown on the 991)

   Information

   Secure square nut to prevent it from falling down.

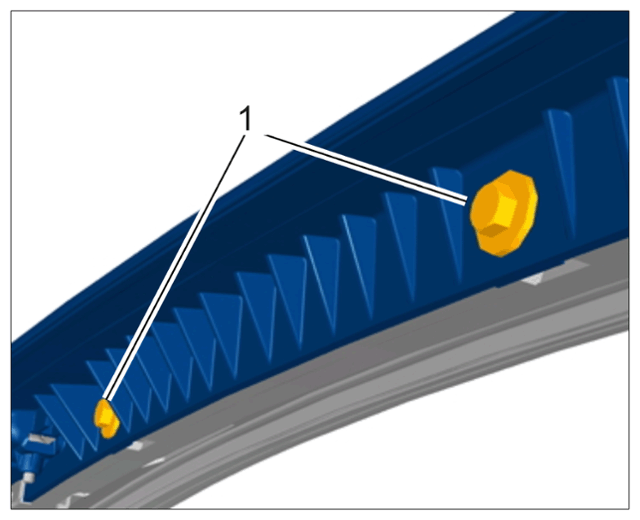

5. Unscrew screws -1-  securing powered sunroof mechanism to assembly frame at the sides.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Assembly frame (shown on the 991)

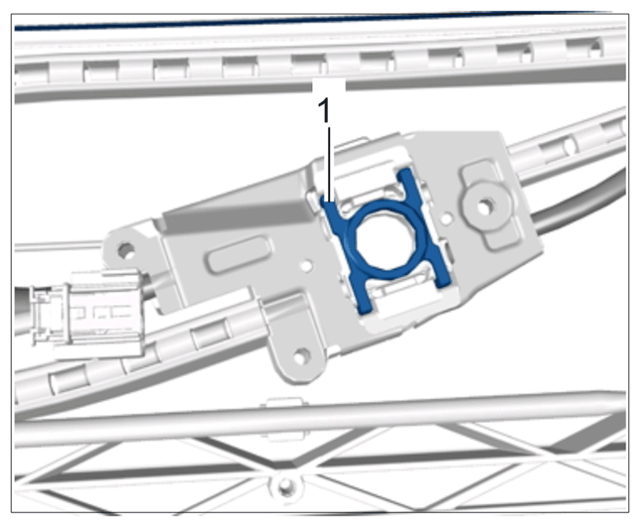

6. Remove safety clip -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Safety clip (shown on the 991)

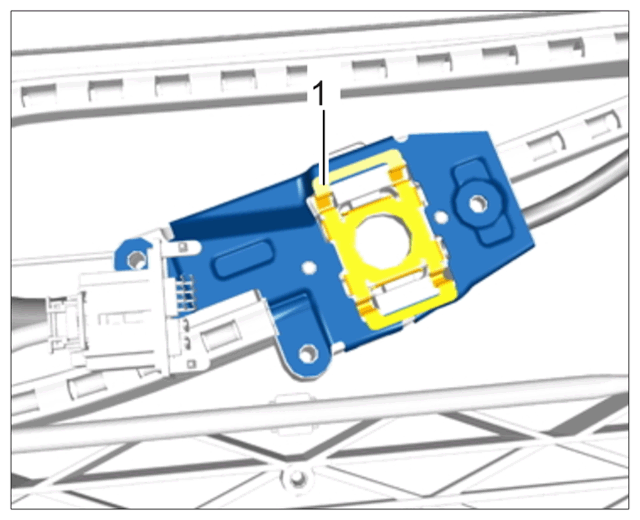

7. Remove metal clip -1-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Metal clip (shown on the 991)

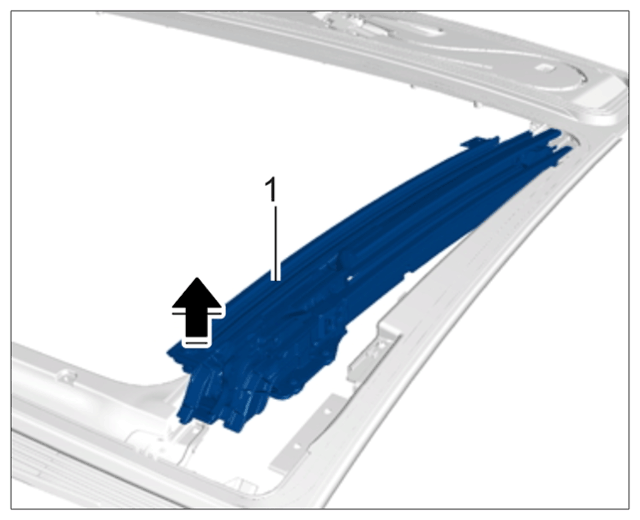

8. Lift powered sunroof mechanism -1-  up and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing powered sunroof mechanism (shown on the 991)

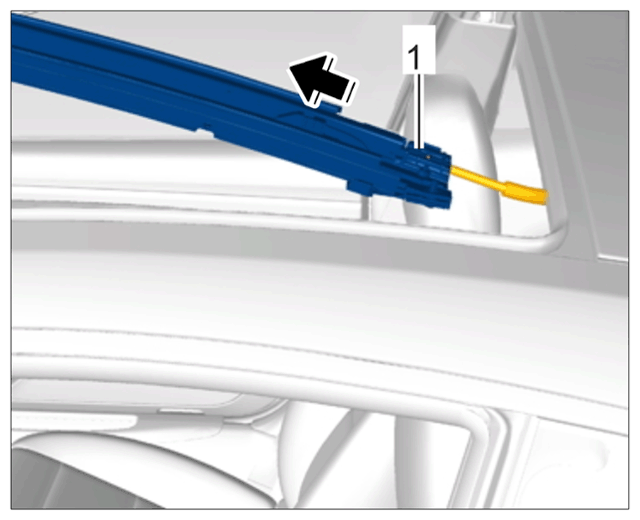

9. Pull powered sunroof mechanism -1-  with drive shaft forward and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling out mounting unit
