Installing Powered Sunroof Mechanism

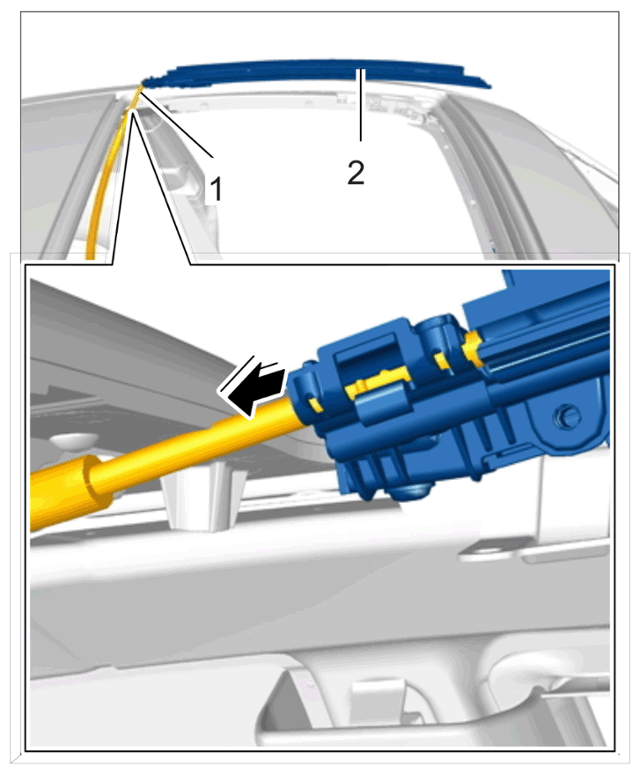

  1. Push drive shaft -1-  of the powered sunroof mechanism -2-  into the guide tube.
    G15533090Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft (shown on the 991)

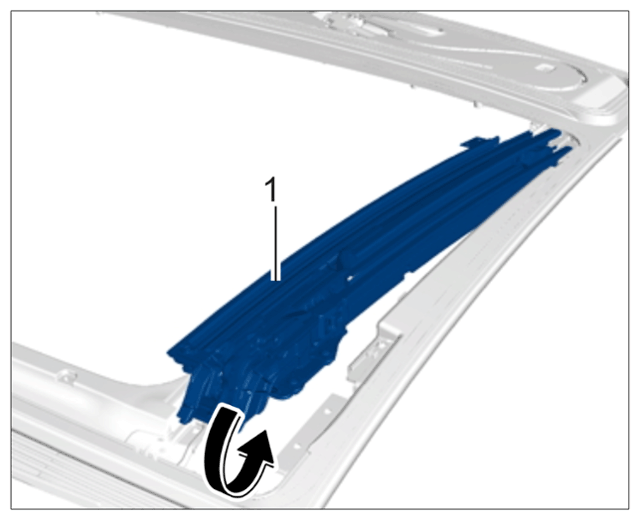

  2. Insert powered sunroof mechanism -1-  into the assembly frame -arrow-  .
    G15533091Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Powered sunroof mechanism (shown on the 991)

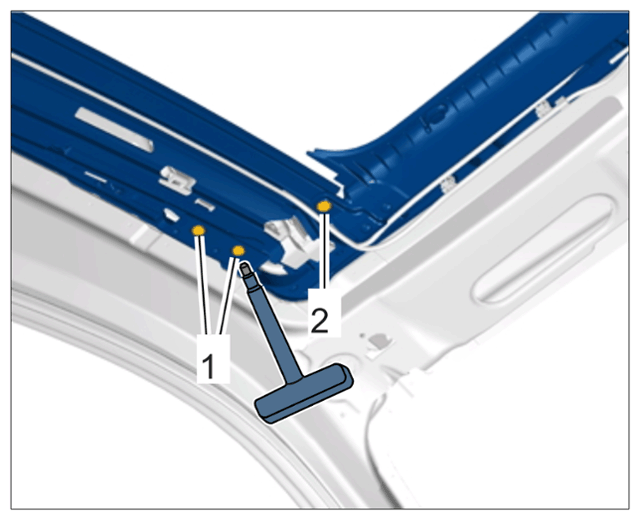

  3. Fit screws -1-  and -2-  and tighten hand-tight.
    G15533092Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Powered sunroof mechanism, front (shown on the 991)

  4. Fit screws -1-  and tighten hand-tight.
    G15533093Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Powered sunroof mechanism, rear (shown on the 991)

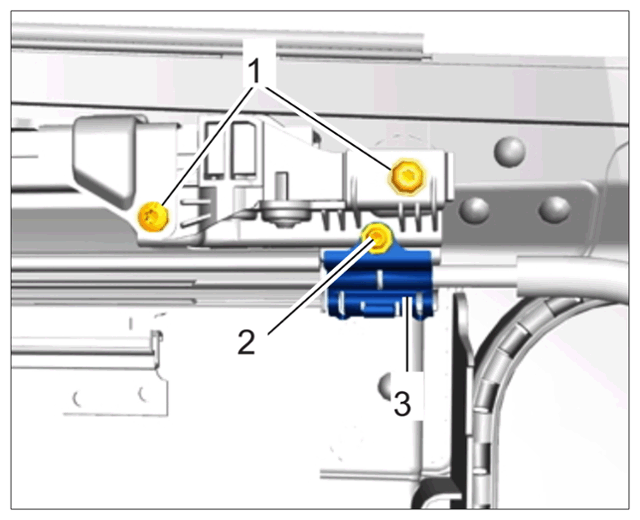

  5. Position retaining bracket for drive pipe -3-  and tighten screw -2-  hand-tight.
    G15533094Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Powered sunroof mechanism, rear (shown on the 991)

  6. Install assembly frame.

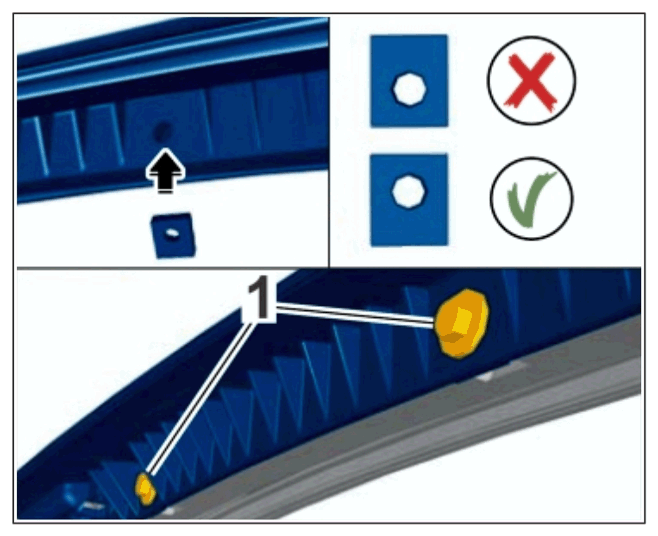

    G15533095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting on assembly frame (shown on the 991)

    Information

    Fit square nut that is further away from the bore with respect to the edge up into the bracket.

    1. 6.1  Insert square nuts. > Mounting on assembly frame (shown on the 991)
    2. 6.2  Fit screws used to secure the powered sunroof mechanism -1-  to the assembly frame and tighten hand-tight.

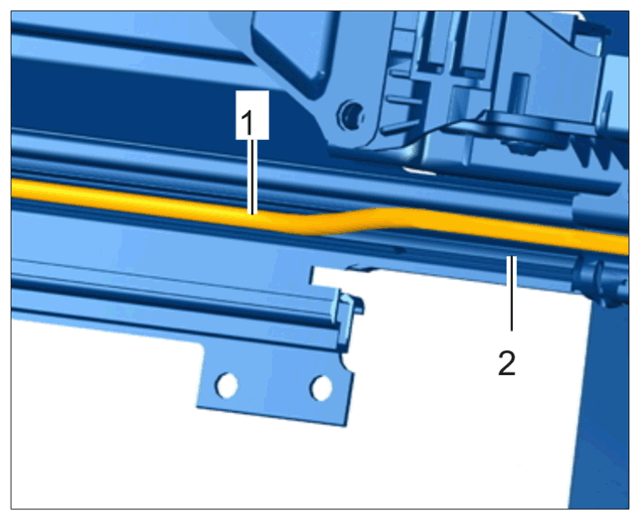

  7. Insert wiring harness -1-  into the guide rail -2-  .
    G15533096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for electric drive (shown on the 991)

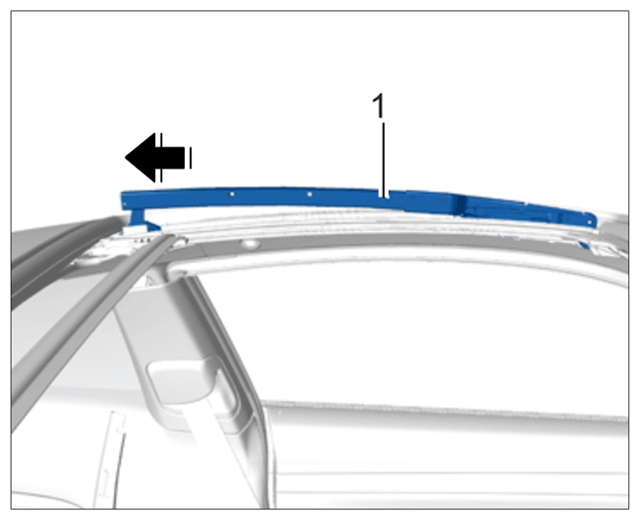

  8. Push powered sunroof mechanism -1-  at the left and right onto the rear lock with your hand.
    G15533097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting unit for sliding roof (shown on the 991)

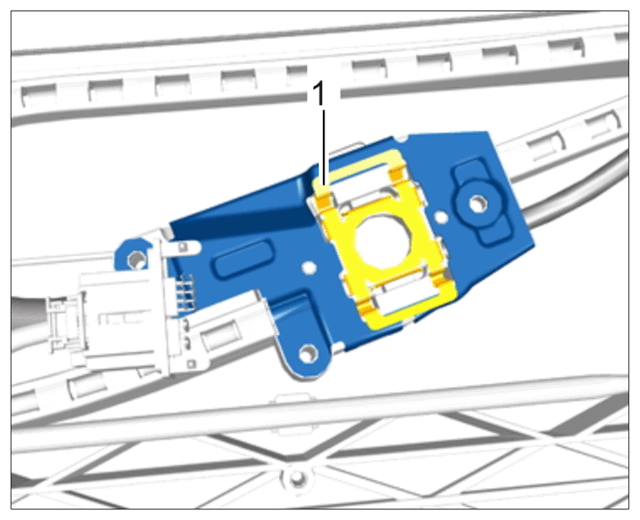

  9. Position metal clip -1-  and engage it in the mounting.
    G15533098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Metal clip (shown on the 991)

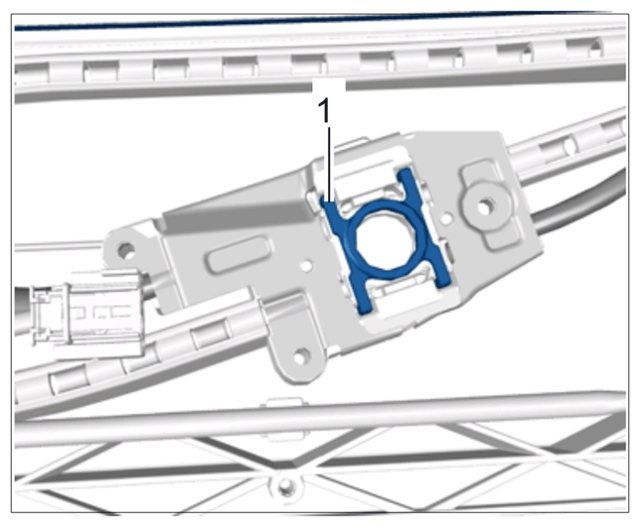

  10. Install safety clip -1-  .
    G15533099Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Safety clip (shown on the 991)

  11. Tighten screws to the specified torque.
    1. 11.1  Screw for outer front powered sunroof mechanism. > Tightening torque 3 Nm (2 ftlb.)
    2. 11.2  Screw for inner front powered sunroof mechanism. > Tightening torque 3 Nm (2 ftlb.)
    3. 11.3  Screw for rear powered sunroof mechanism. > Tightening torque 3 Nm (2 ftlb.)
    4. 11.4  Screw for guide tube retaining bracket. > Tightening torque 3 Nm (2 ftlb.)
    5. 11.5  Screw securing powered sunroof mechanism to assembly frame. > Tightening torque 3 Nm (2 ftlb.)
