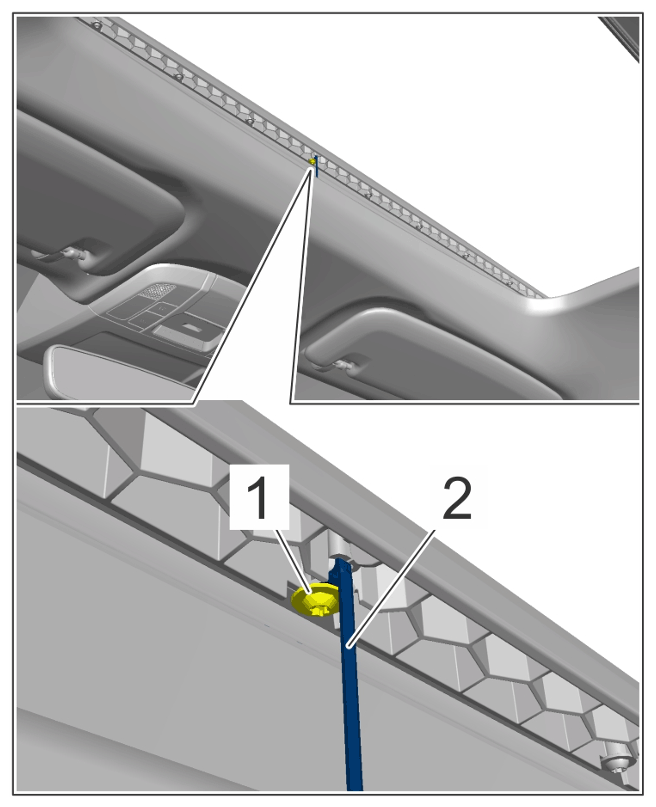

| Screw for air deflector cable |
Item 1 |
Tightening torque |
0.5 Nm (0.35 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Air deflector cable mounting |
|
|
|
|
|

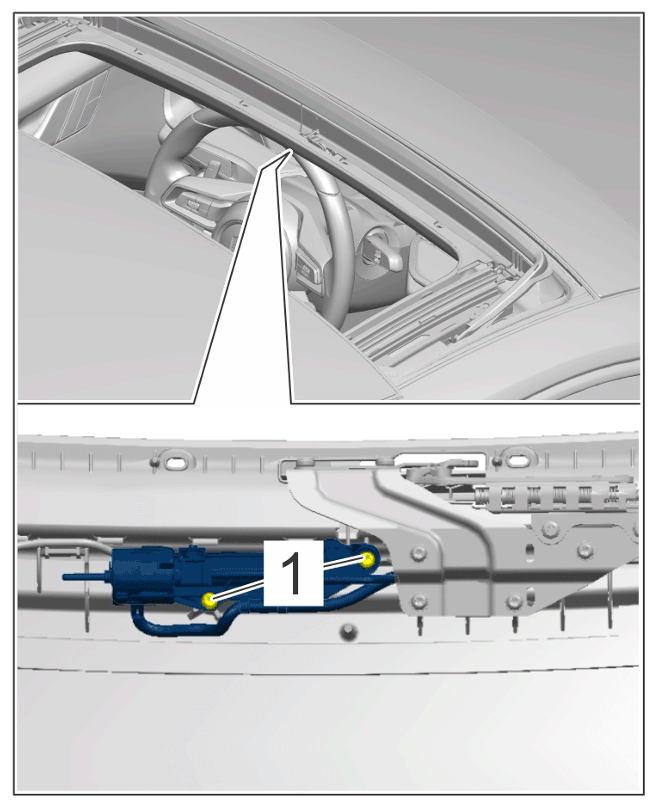

| Air deflector motor |
Item 1 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Air deflector motor |
|
|
|
|
|
