Removing Air Deflector (Operating Cable)

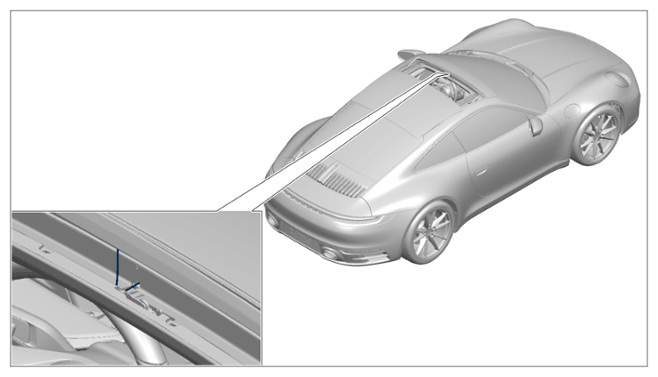

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1. Open sliding roof.
2. Unscrew and remove screw -1-  .

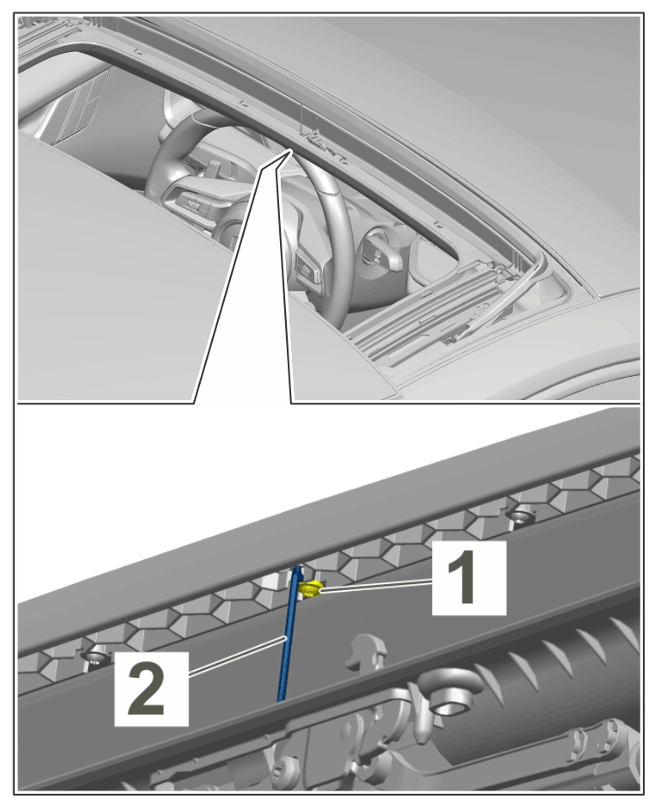

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

3. Move air deflector motor (operating cable) into service position.
   1. 3.1 > 9900 - PIWIS Tester 3  must be connected to the vehicle before starting the Tester.

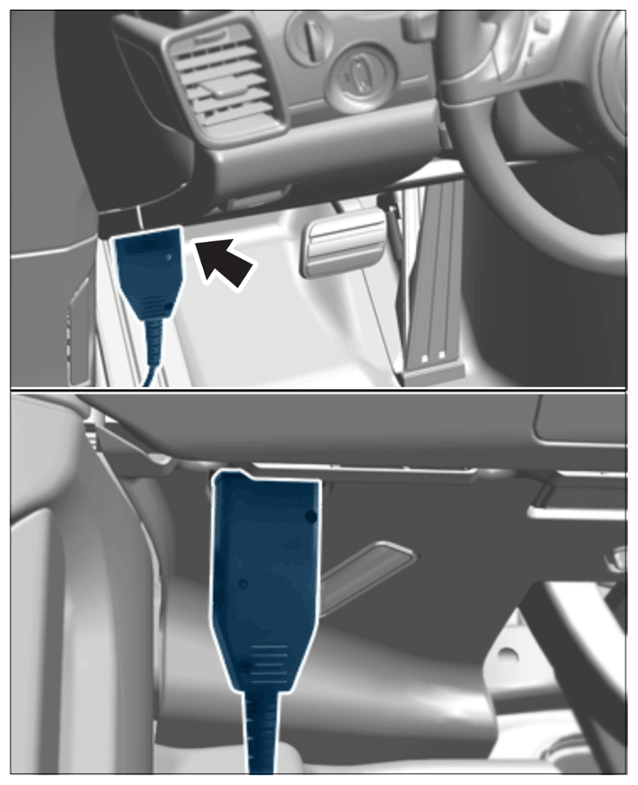

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Diagnostic socket

   2. 3.2 Switch on ignition.
   3. 3.3  Select → 'Sliding roof'  in the control unit selection screen (→ 'Overview'  menu).
   4. 3.4  Select the 'Drive links/checks'  menu.
   5. 3.5 'Drive links'  must be selected. Then press >> to confirm.
   6. 3.6 'Air deflector, service position'  must now be selected. Then press >> to confirm.
   7. 3.7 'Move to service position'  must be selected. Then press F8 to confirm.
   8. 3.8 Switch off ignition.
4. Loosen air deflector motor.

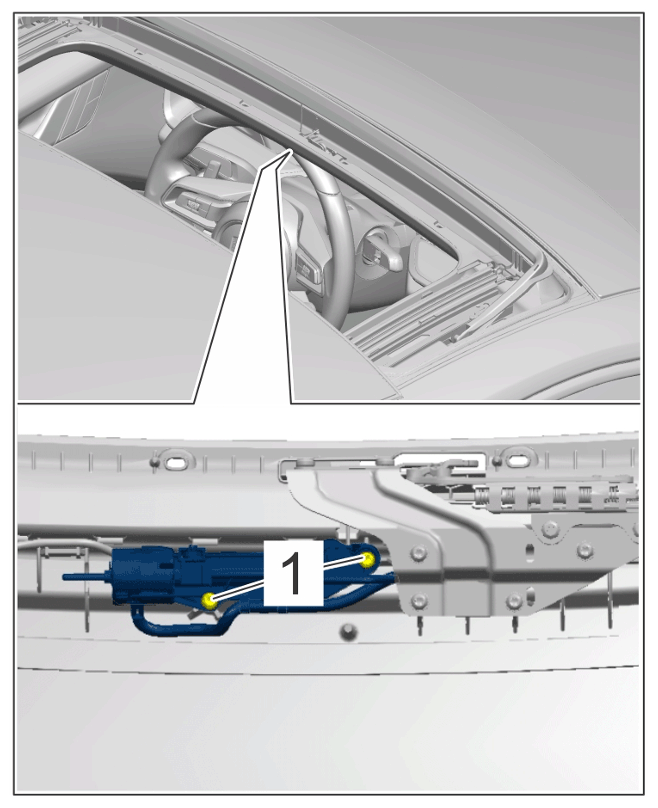

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air deflector motor

   1. 4.1  Unscrew and remove screws -1-  .

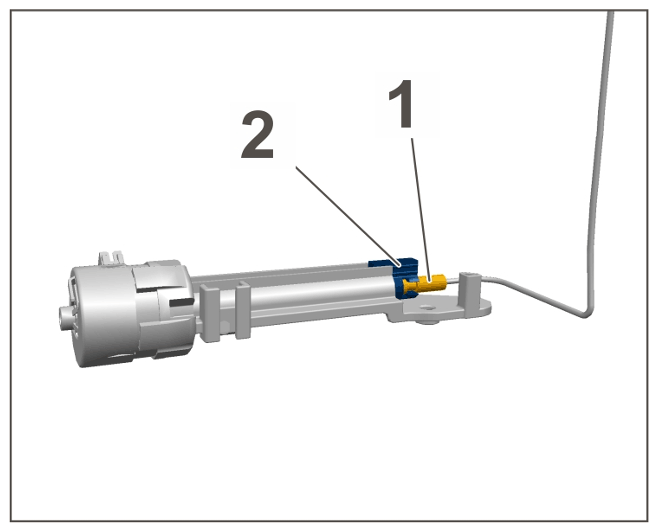

5. Disengage operating cable -1-  from the guide -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Operating cable
