Installing Air Deflector (Operating Cable)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

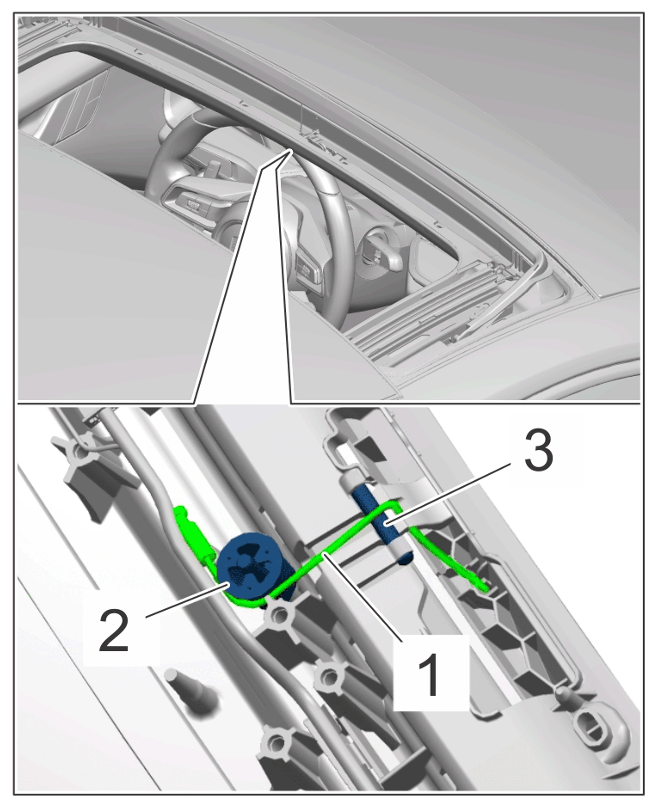

Operating cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

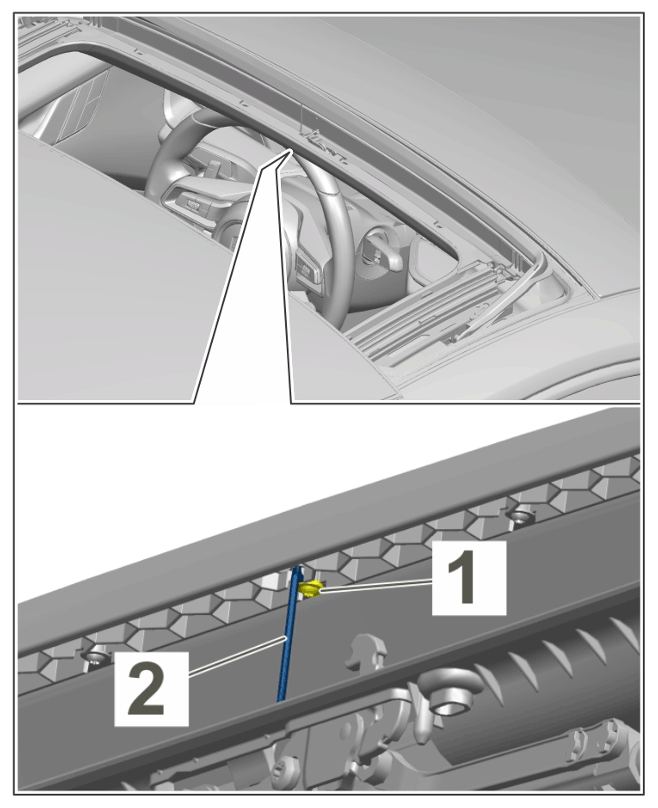

Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

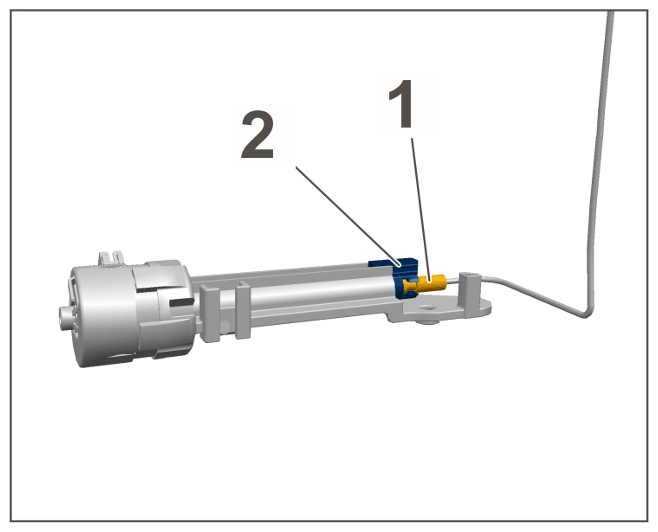

Operating cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

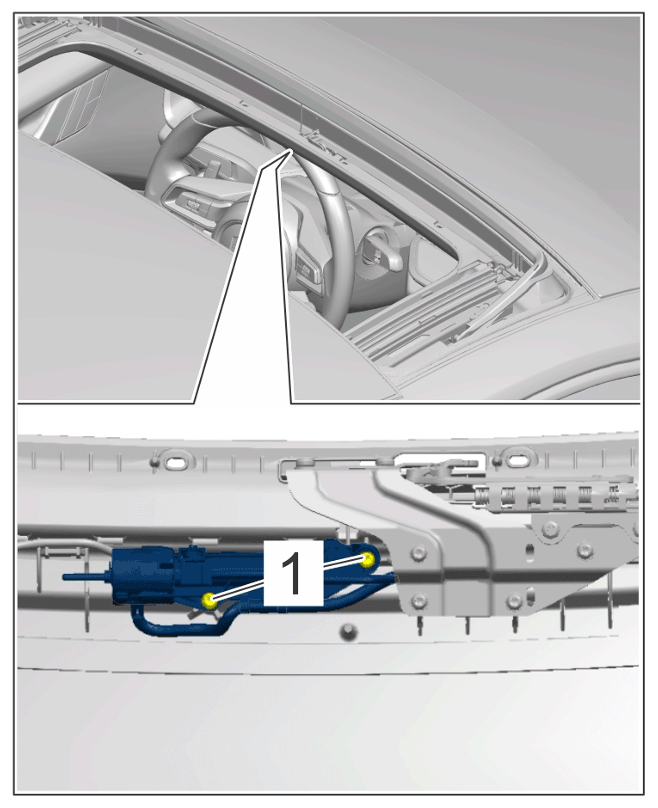

Air deflector motor

1. 4.1  Tighten screws to > Tightening torque 3 (2ftlb.) Nm  .

1. 5.1 > 9900 - PIWIS Tester 3  must be connected to the vehicle -arrow-  before starting the Tester.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

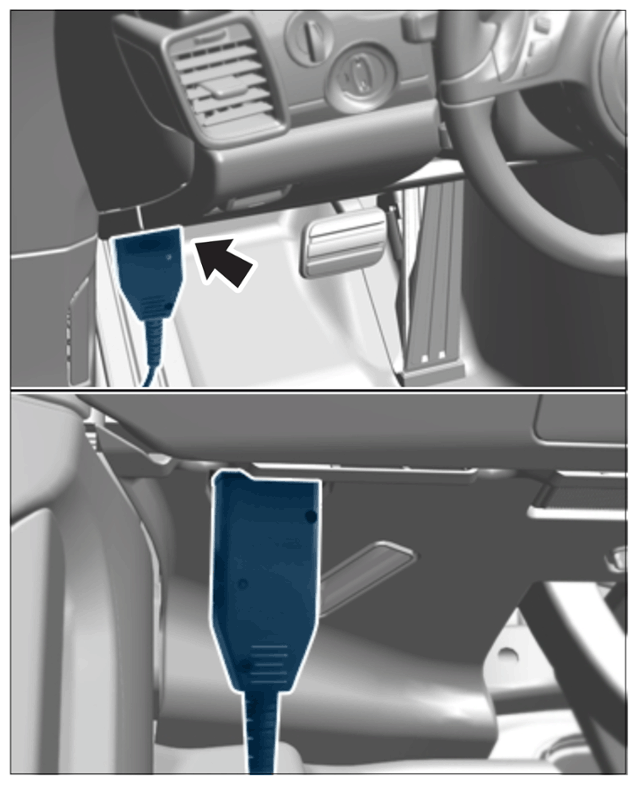

   Diagnostic socket

2. 5.2 Switch on ignition  .
3. 5.3  Select → 'Sliding roof'  in the control unit selection screen (→ 'Overview'  menu).
4. 5.4  Select the 'Drive links/checks'  menu.
5. 5.5 'Drive links'  must be selected. Then press >> to confirm.
6. 5.6 'Air deflector, standardization'  must now be selected. Then press >> to confirm.
7. 5.7 'Standardise'  must be selected. Then press F8 to confirm.
8. 5.8 Switch off ignition.
