| Screw for air deflector bracket |
Item 1 |
Tightening torque |
2 Nm (1.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

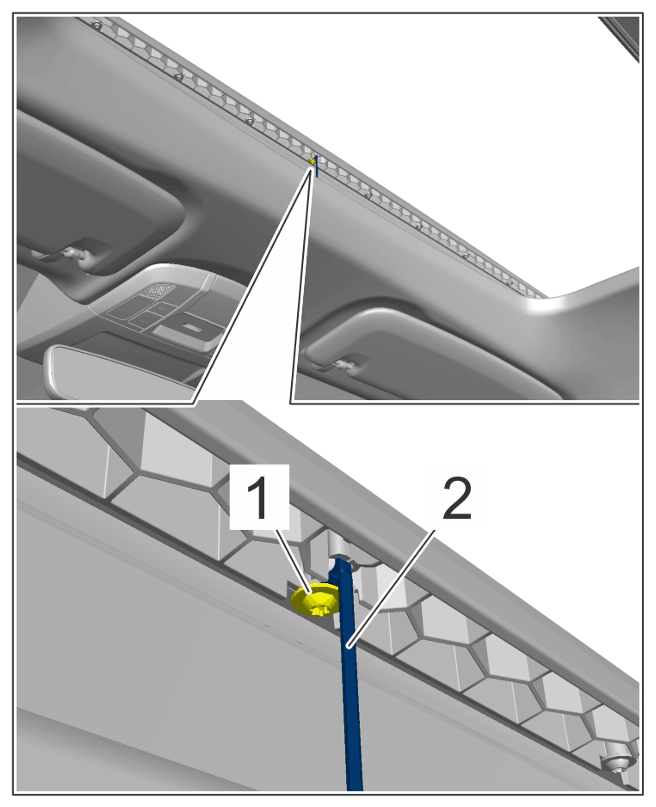

Air deflector bracket |
|
|
|
|
|
| Screw for air deflector cable |
Item 1 |
Tightening torque |
0.5 Nm (0.35 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

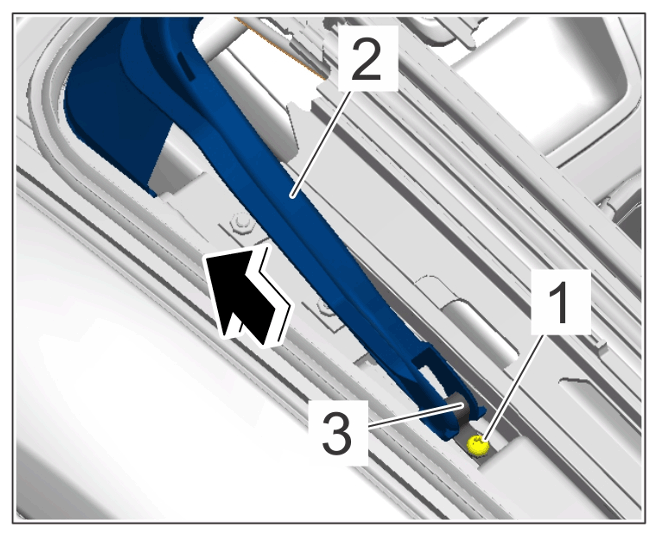

Air deflector cable mounting |
|
|
|
|
|
