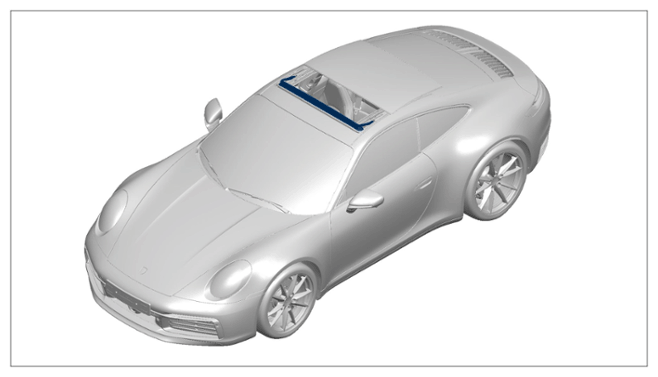

Removing Air Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation edition

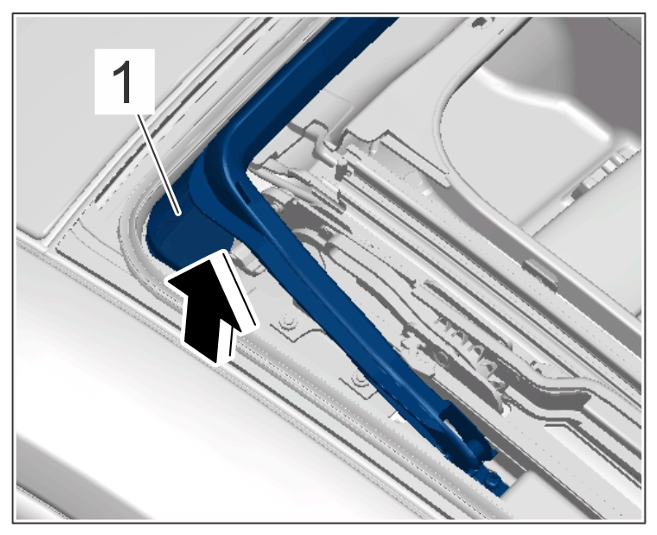

1. Pull air deflector net -1-  out of the frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air deflector net

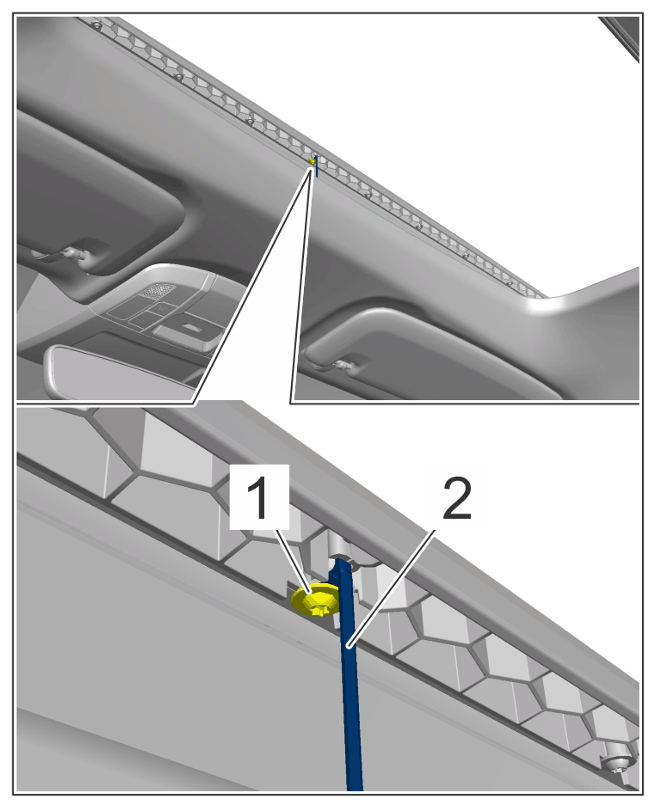

2. Unscrew screw -1-  and remove air deflector cable -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air deflector cable mounting

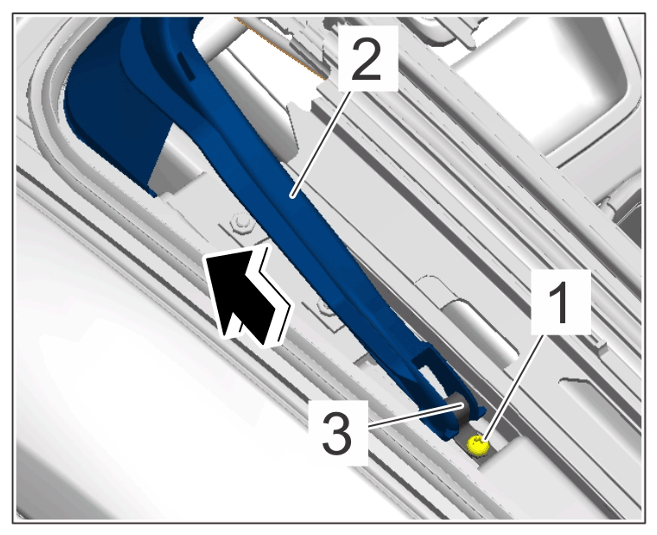

3. Loosen air deflector.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air deflector

   1. 3.1  Unscrew and remove screw -1-  .
   2. 3.2  Pull out air deflector bracket -2-  and air deflector spring -3-  .
4. Remove air deflector.
