Installing Air Deflector

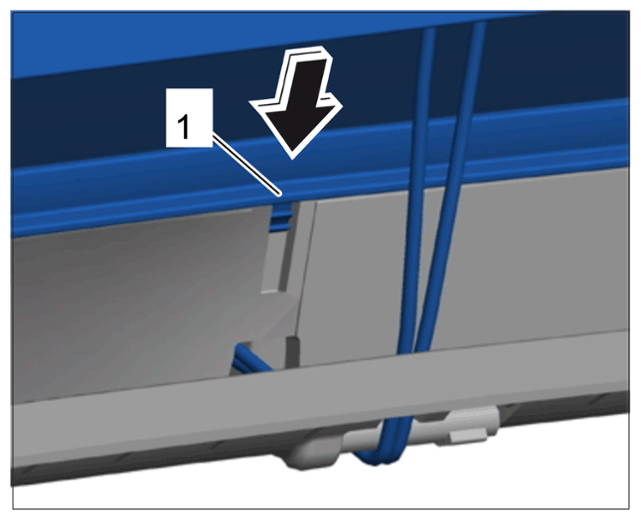

Fit the air deflector springs in the air deflector bracket.
Insert air deflector bracket together with air deflector spring into the frame and tighten screw to > Tightening torque 2 Nm (1.5 ftlb.) .
Information

Coat the air deflector piping and insertion groove with soapy water to facilitate fitting.
Install air deflector net.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing air deflector net
1. 3.1 Centre the marking on the piping of the air deflector net in the groove.
  Information

  When fitting the air deflector net in the groove, make sure that it is fitted without folds.
2. 3.2 Fit the piping in the groove, starting at the centre and moving outwards.
Tighten screw for air deflector cable to > Tightening torque 0.5 Nm (0.35 ftlb.) .
