Removing Operating Cable (Sun Blind)

Information

• The illustrations for the procedure show only one side of the vehicle.
• All steps must also be completed on the opposite side of the vehicle.
• These must be carried out as a mirror image of the steps shown.

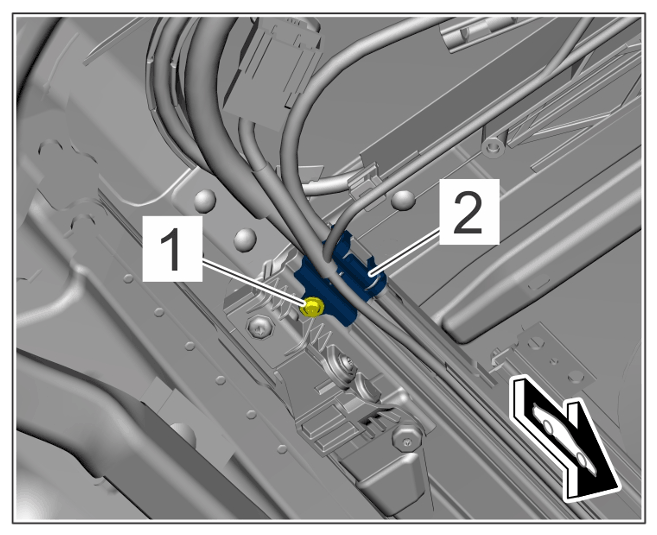

1. Unscrew screw -1-  and remove operating cable holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

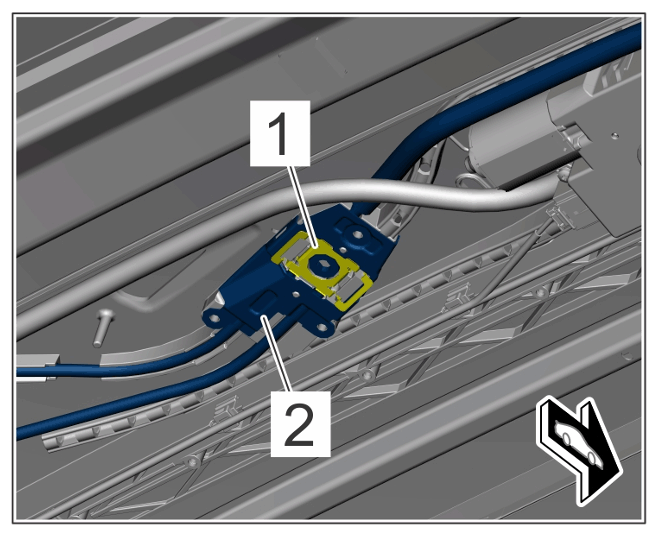

2. Unclip clamp -1-  from operating cable mechanism -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clip

3. Feed out and remove operating cable (sun blind).
