Removing Sunroof Motor

Information

Close the mechanism before removing the electric drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

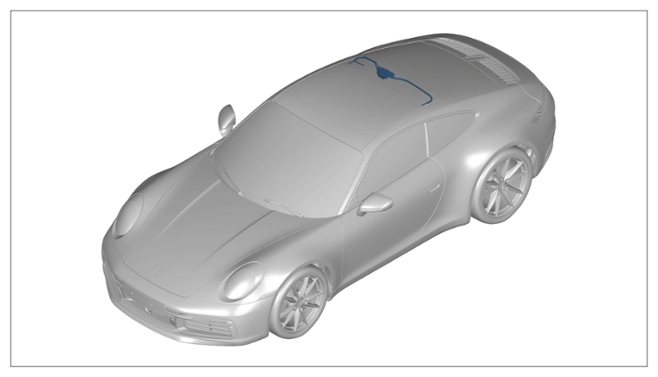

Installation position

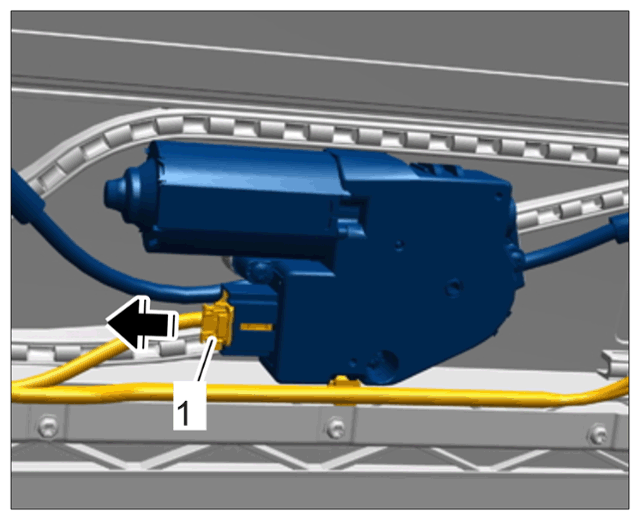

1. Release and disconnect plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling off plug connection

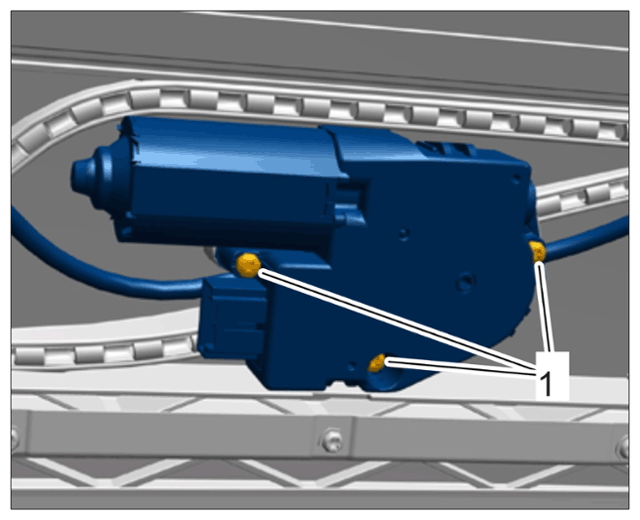

2. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Remove engine

3. Remove sunroof motor.
