Removing Sliding Roof (Locking Mechanism)

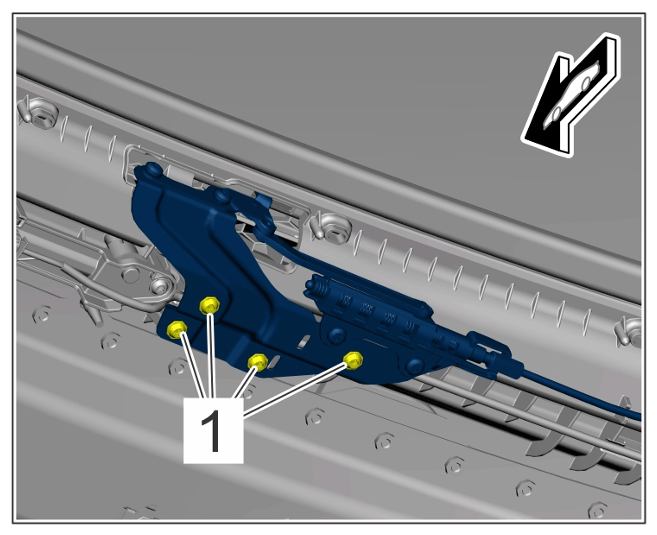

  1. Unscrew and remove screws -1-  .
    G15533044Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

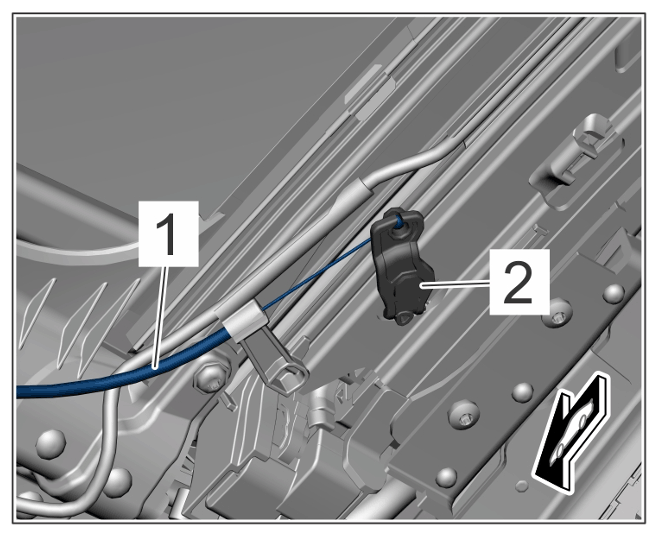

  2. Guide locking mechanism -1-  out of the driver -2-  .
    G15533045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Driver

  3. Remove sliding roof (locking mechanism).
