Removing Rear Seat Cushion

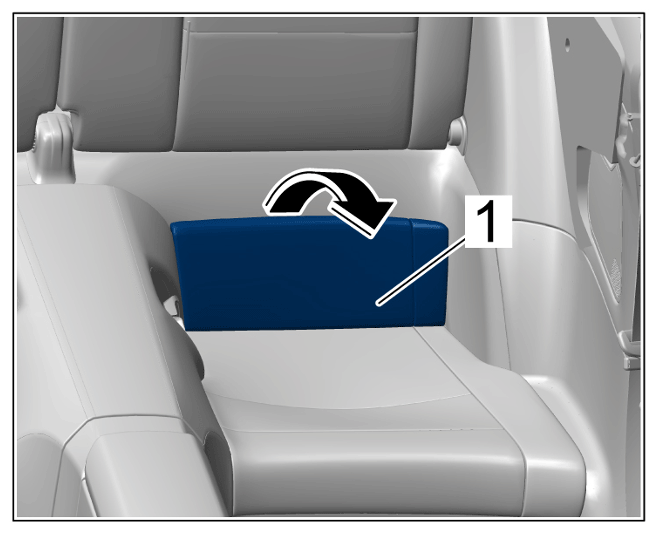

1. Pull rear lumbar part -1-  in the upper area off the Velcro fasteners and remove it. -Arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear lumbar part

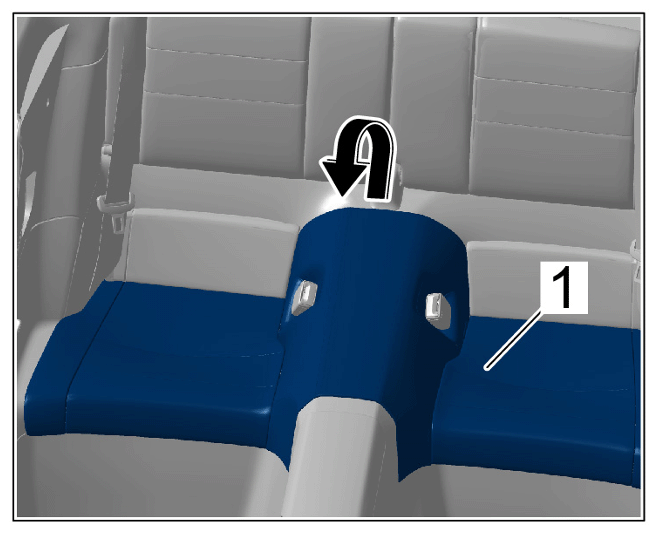

2. Detach center part of rear seat cushion -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre part of rear seat cushion

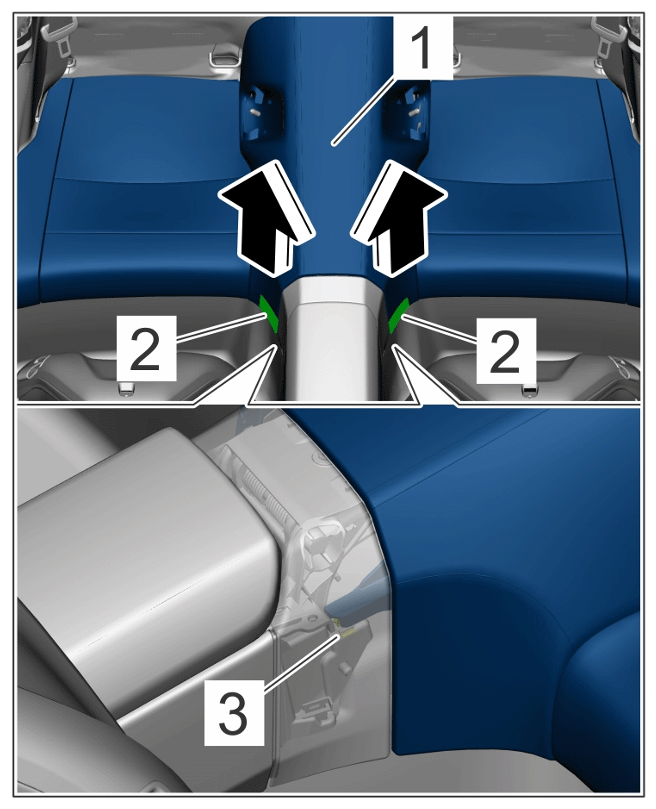

   1. 2.1 Pull rear seat cushion -1-  up gently in area -2-  (-Arrow-  ) in order to unclip the clips -3-  .
3. Detach rear seat cushion -1-  .

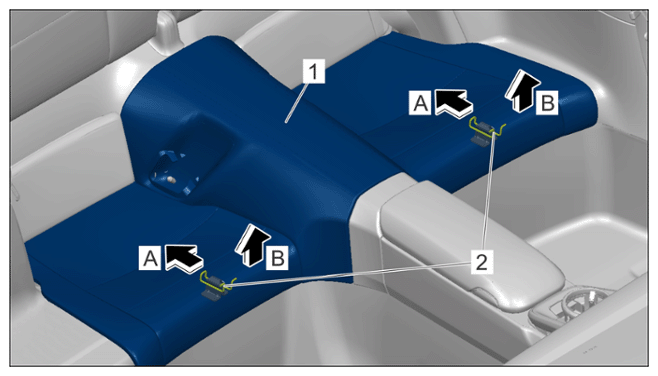

   1. 3.1 Press rear seat cushion -1-  firmly to rear -arrow A-  close to catch -2-  and unclip rear seat cushion -1-  by pulling upwards. -arrow B-

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear seat cushion

   2. 3.2 Remove rear seat cushion -1-  . -arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat cushion
