Removing Suction Fan For Seat Backrest

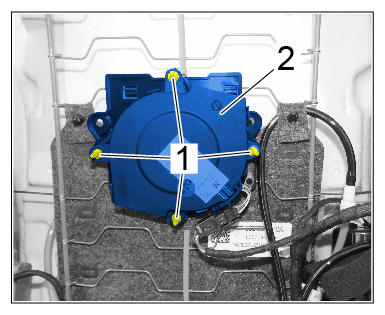

1. Guide rubber pins -1-  through and detach suction fan for seat backrest -2-  from the padding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Suction fan for seat backrest

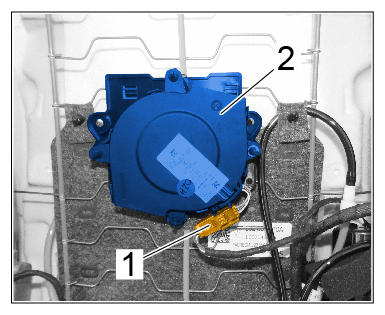

2. Release and disconnect electric plug connection -1-  and remove suction fan for seat backrest -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
