Removing Cover For Front Seat

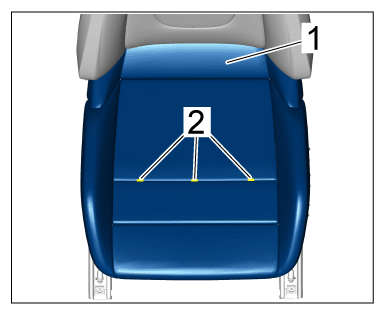

  1. Only for vehicles with Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

    Cut cushion rings -2-  and detach cover for front seat -1-  .

    G15534551Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cushion rings

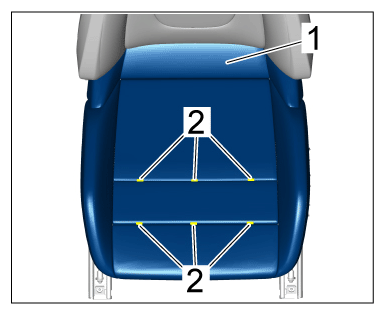

  2. Only for vehicles without Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

    Cut cushion rings -2-  and detach cover for front seat -1-  .

    G15534552Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cushion rings

  3. Remove front seat cover.
