Technical Values

Location	Description	Type	Basic value	Tolerance 1

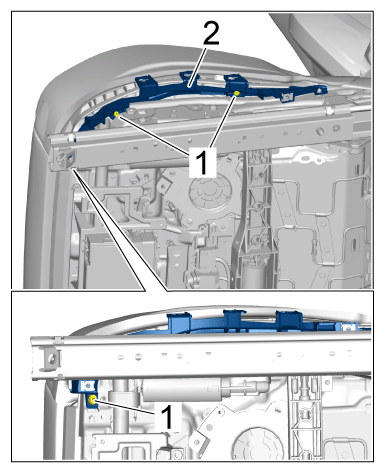

Screw securing backrest cover to seat	Item 1	Tightening torque	2, 2 Nm	+/- 0.2 Nm (0.15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

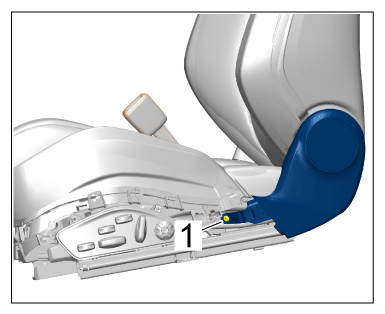

Screws securing trim panel holder to seat frame	Item 1	Tightening torque	3 Nm (2.2 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

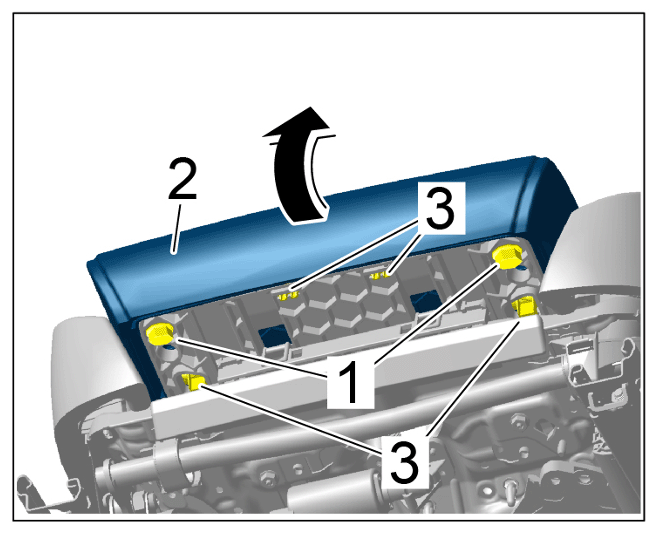

Screws securing seat shell to rear seat frame	Item 2	Tightening torque	6 Nm (4.4 ftlb.)	+/- 1 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seat cover

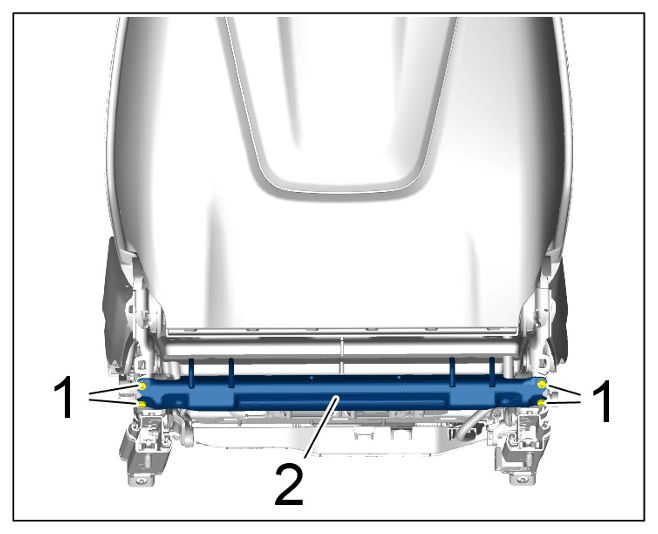

Screws securing ISOFIX to seat frame	item 1	Tightening torque	6 Nm (4.4 ftlb.)	+/- 1 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

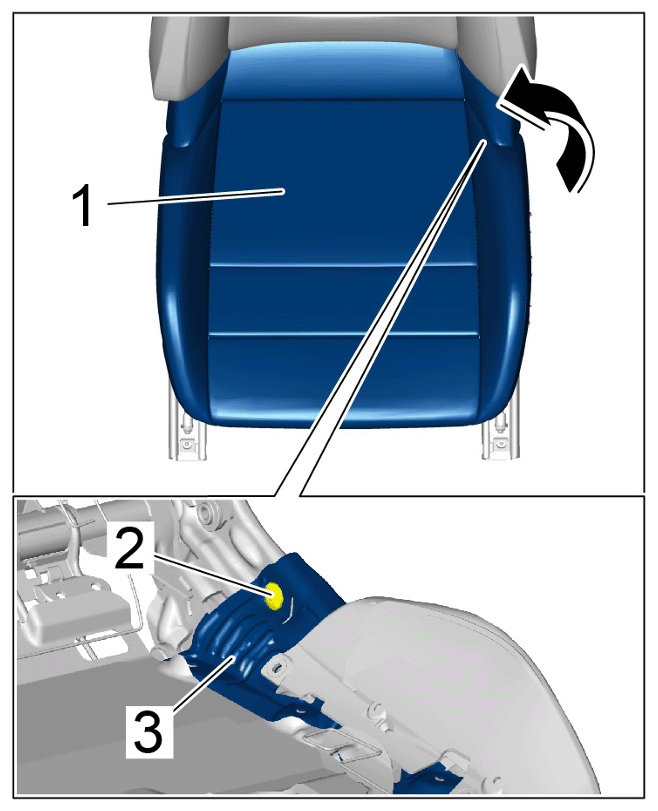

Screw securing padding for seat-surface extension to seat-surface extension	Item 1	Tightening torque	1.8 Nm (1.3 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Padding for seat-surface extension
