Removing Padding For Front Seat

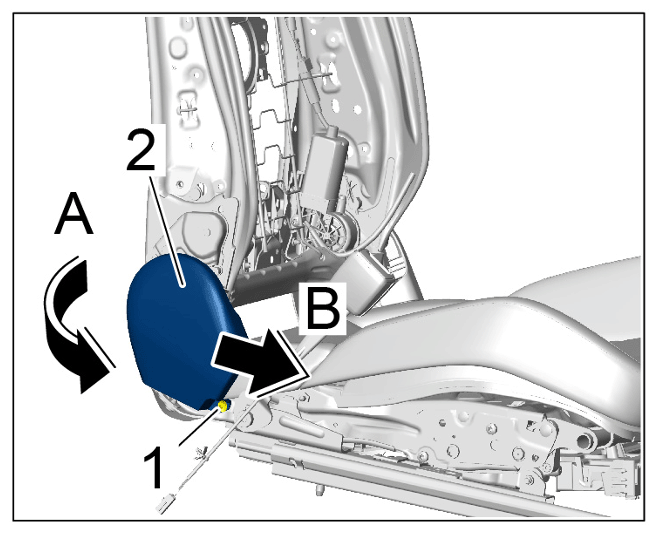

Remove backrest cover -2- .
1. 1.1 Unscrew and remove screws -1- .
2. 1.2 Unclip backrest cover -2- at the rear -arrow A- .
3. 1.3 Guide backrest cover -2- forward and remove it -arrow B- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest cover
Passenger's side only:
Unscrew screws -1- and remove ISOFIX -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

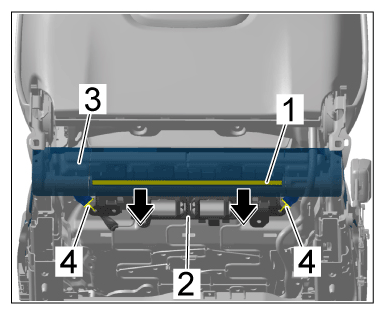

Loosen cover for front seat -3- at the rear.
1. 3.1 Detach rear clamping strip -1- from cover holder -2- (-Arrows- ).
2. 3.2 Disengage restraining straps -4- from cover holder -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear clamping strip
Guide cover for front seat -1- through towards the seat surface -Arrows- and cut cushion rings -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion rings

Information

Shown on the left side.

Right side same as left side.
Unclip cover for front seat -1- at the sides and fold it over towards the seat surface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front seat at the sides

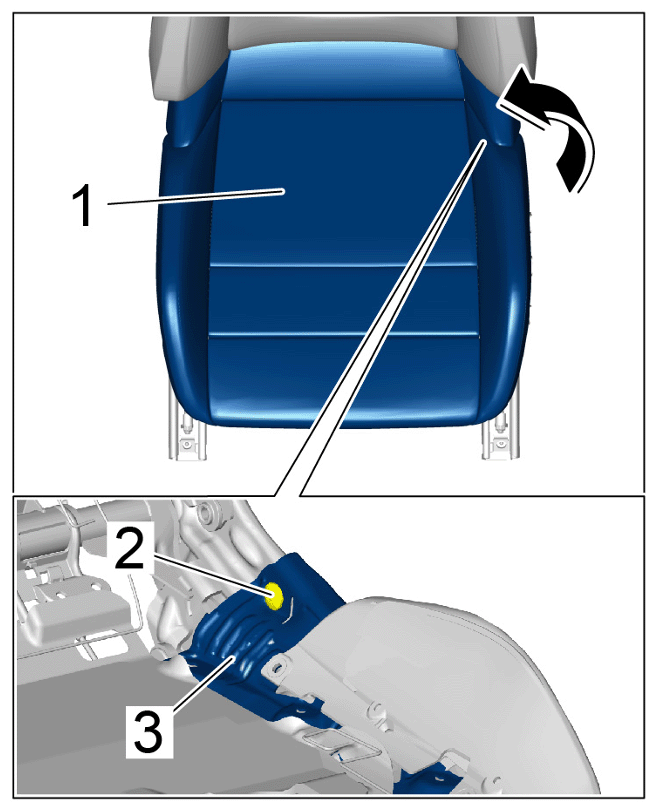

Press cover for front seat -1- at the outside with padding for front seat aside -arrow- and unscrew screw -2- on the seat shell -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for front seat

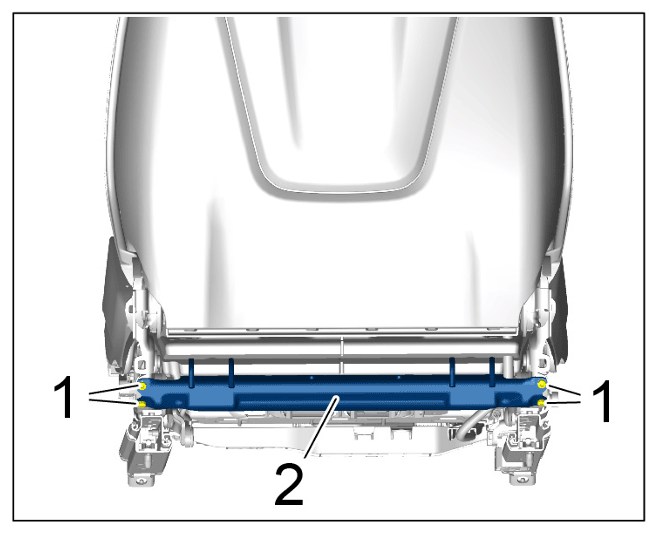

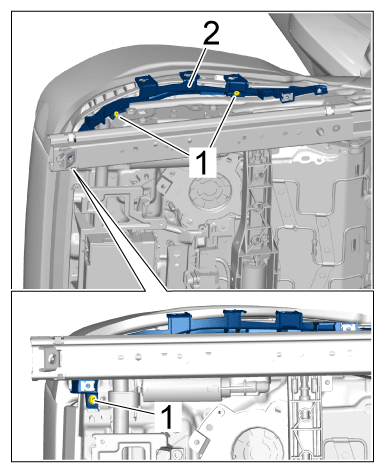

Unscrew screws -1- and remove trim panel holder -2- . Lift up the seat shell to do this.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

Information

Shown on the left side.

Right side same as left side.

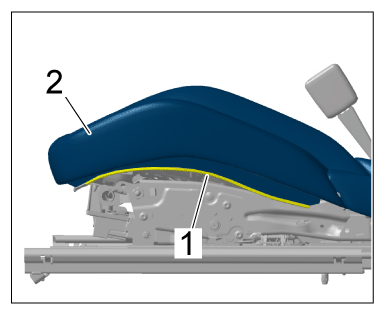

Disengage clamping strip at the sides -1- and detach cover for front seat -2- from the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamping strip at the sides
Only for vehicles without Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

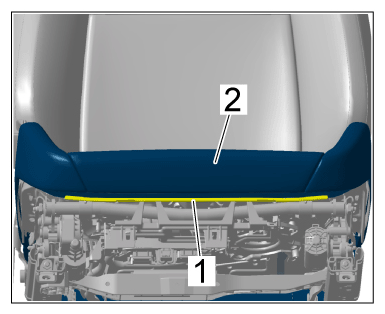

Disengage front clamping strip -1- and detach cover for front seat -2- from the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front clamping strip
Only for vehicles without Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

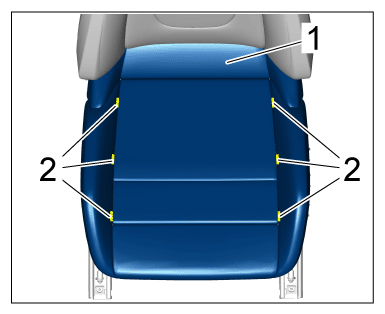

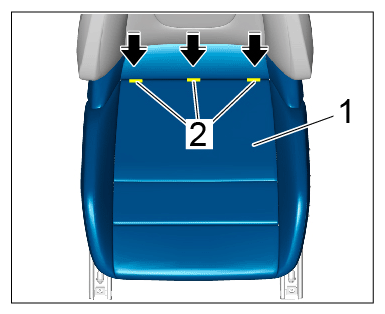

Unclip cover for front seat -1- from the fixing clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clips
Only for vehicles with Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

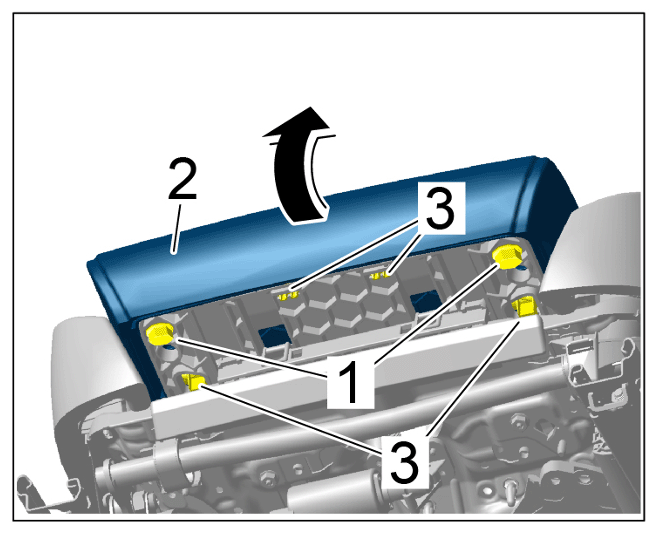

Detach padding for seat-surface extension -2- .
1. 11.1 Unscrew and remove screws -1- .
2. 11.2 Unclip padding for seat-surface extension -3- .
3. 11.3 Place padding for seat-surface extension -2- on padding for front seat -arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for seat-surface extension
Only for vehicles with Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

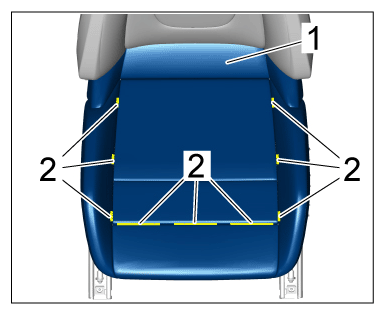

Unclip seat cover -1- from the fixing clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clips
Only for vehicles with heated seats (I-no. 4A3) and Adaptive sports seats Plus, 18-way (I-no. Q1J) or Fully electric sports seats, 14-way (I-no. Q2J):

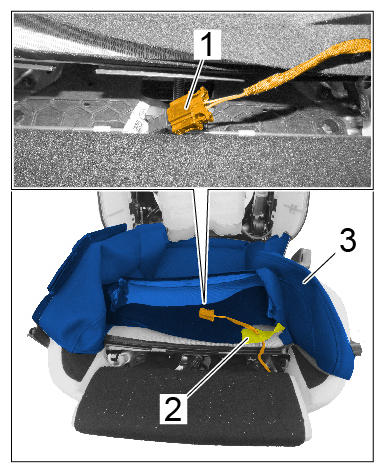

Release and disconnect electric plug connection for seat-surface extension -1- and guide it out of the clip for the seat cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Only for vehicles with heated seats (I-no. 4A3):

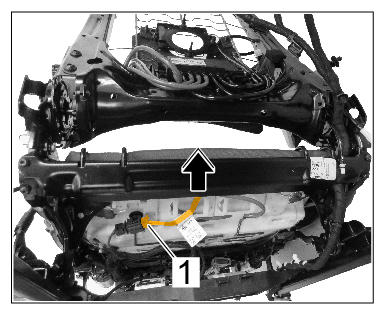

Disconnect electric wire harness for seat heating.
1. 14.1 Release and disconnect electric plug connection for seat heating -1- .
  Information

  Make sure not to trap or damage the wire harness when pulling it through.
2. 14.2 Guide electric wire harness out through the seat frame -arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Remove padding for front seat.
