Removing Suction Fan For Front Seat Surface

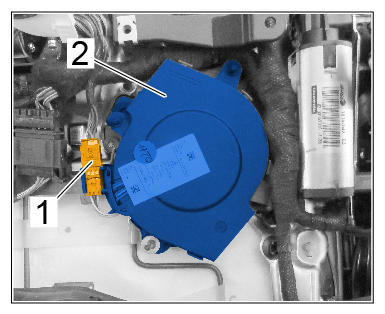

1. Release electric plug connection -1-  and disconnect it from suction fan for front seat surface -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

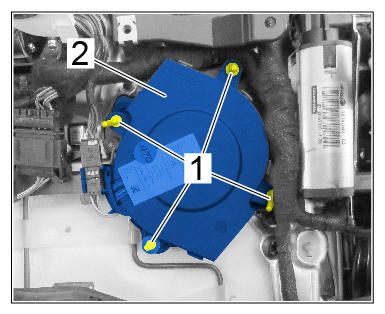

2. Disengage rubber pins -1-  and remove suction fan for front seat surface -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat-surface suction fan
